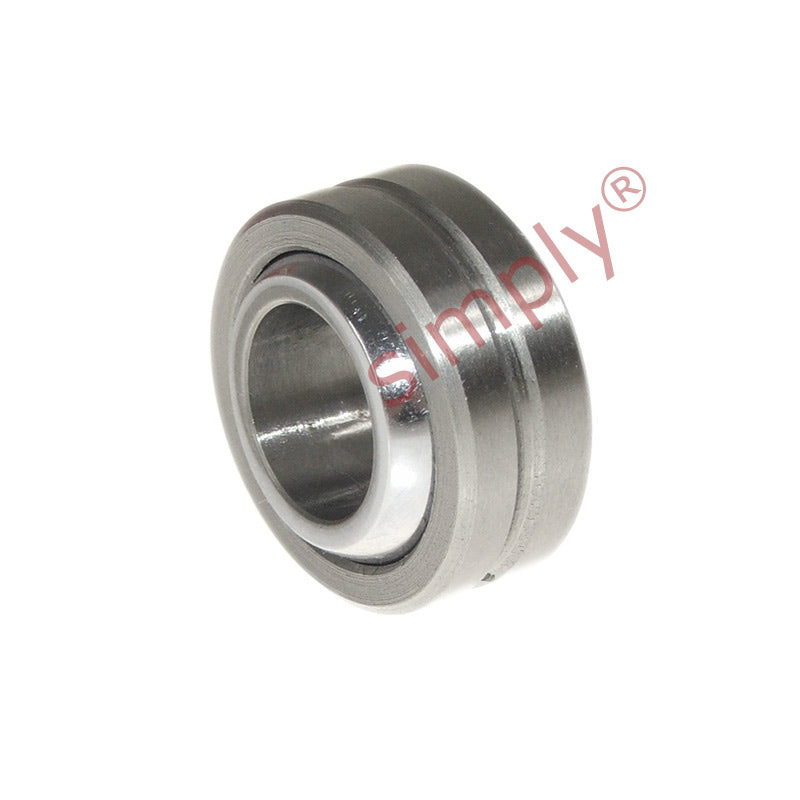

COM03 Branded Imperial Spherical Plain Bearing 3/16 inch Bore

Name: COM03 Branded Imperial Spherical Plain Bearing 3/16 inch Bore
Brand: Major Brand
SKU: COM03-MB
Availability: OutOfStock

Out of stock

Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Spherical Plain Bearing: COM series is 2 piece (assembled and not separable) imperial range of general purpose spherical plain bearings suitable for high shock loads and medium industrial /mechanical load applications requiring low friction, they do not require maintenance. Dimensions are suited to auto-sport and racing applications.
Material Specification: Outer Raceway steel 100Cr6, Ball Bearing steel 100Cr6, case hardened & electro-less Nickel plated.
Temperature Range Specification -54 deg C to +121 deg C

Brand / Quality:: Major Brand - High Quality
Inside Diameter:: 4.76mm = 0.187 (3/16) inch
Outside Diameter:: 14.29mm = 0.563 (9/16) inch
Width:: 7.14mm = 0.281 (9/32) inch

Technical

b	3/16 inch
w	9/32 inch
h	9/32 inch
D	9/16 inch
O	0.293 inch
Static load	14464 N
