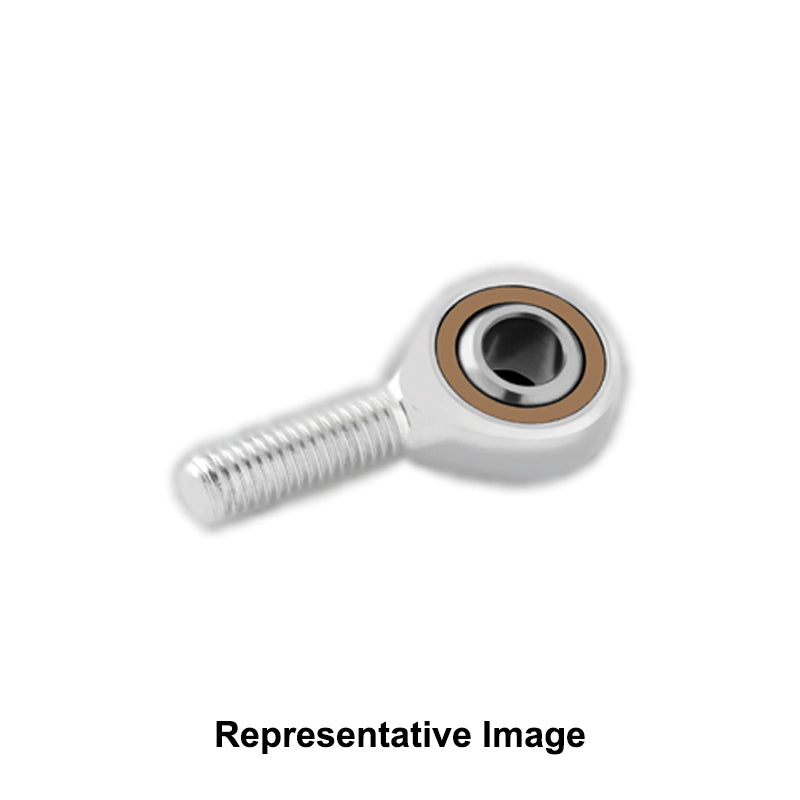

Chiavette CM5 Right Hand Steel / Bronze Lined Plain Male Rod End 5mm Bore M5 Thread - Allow 2-3 Days

Chiavette (Tescubal) "TOP" Version Rod Ends: "TOP" version rod ends are high resistance and precision products, which are made according to ISO 12240-4 K series and ISO 12240-1 K series. They are maintenance-free and employ a coupling of tempered, polished steel (inner ring) on sintered bronze (outer ring) impregnated with a high-potency lubricating fluid, which guarantees constant lubrication. The support of the rod end is produced in automatic steel (11SMnPb30) from bore size 5mm to 12mm, successive sizes are produced in forged, tempered steel. The outer ring is cold-formed on the inner ring, to guarantee 100% surface contact, so that it can resist high loads and speeds, keeping the right lubrication during operation.
Benefits: Maintenance-free operation, high load capacity and reduced wear during operation, products are capable of functioning in the presence of or when immersed in oil, particularly suitable in case of oscillation movements, complete revolutions, high speeds

Brand / Quality:

Chiavette - High Quality

Thread Size:

M5

Thread M / F:

Male

Thread Direction:

Right Hand

Inside Diameter:

5mm

Material:

Bronze Lined
