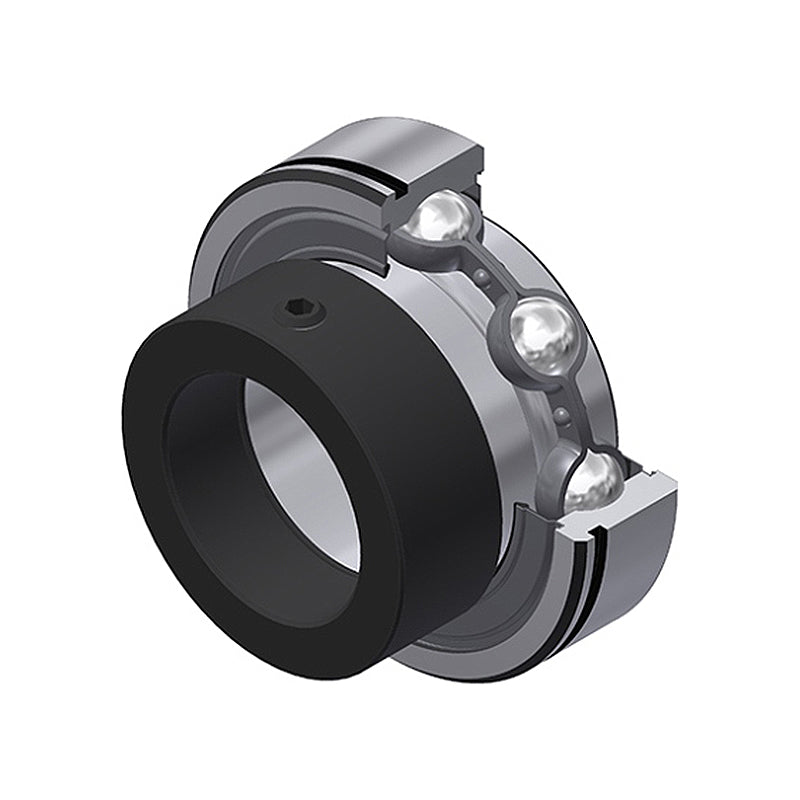

SNR CES207-23 Imperial Flatback Grooved Parallel Outer Bearing Insert 1-7/16 inch Bore 72mm Outside Diameter with Eccentric Collar

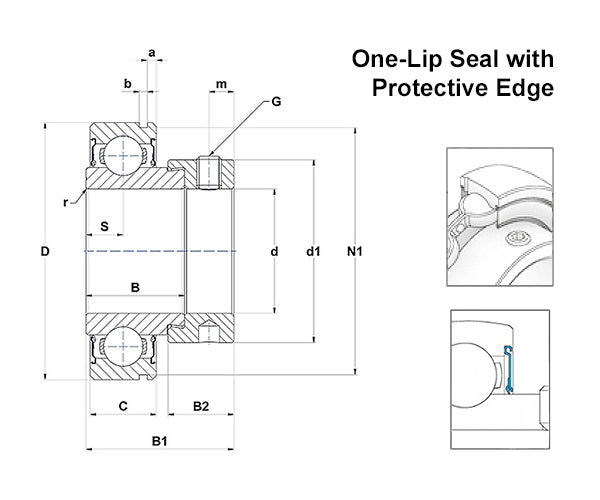

SNR CES Flatback Parallel Outer Bearing Insert with Eccentric Collar: This bearing insert is designed for specific applications requiring axial fixation without relubrication capabilities, unsuitable for standard housings with spherical bearing seats. It features a cylindrical outer ring with a snap ring groove, and a narrow inner ring design. The steel inserts include a single lip seal on each side and a zinc-coated sheet steel retainer with a vulcanized NBR seal. The axially preloaded seal lip is positioned behind a protective edge, ensuring durability under normal environmental conditions and accommodating medium to high rotation speeds.
Benefits: High-quality brand, high-performance, precision-engineered

Brand / Quality:

SNR - High Quality

Thread Size:

5/16-24UNF

Inside Diameter:

36.513mm = 1.437 (1-7/16) inch

Outside Diameter:

72mm

Width:

38.9mm

Style:

CES
