SKU: C4044K30V-SKF

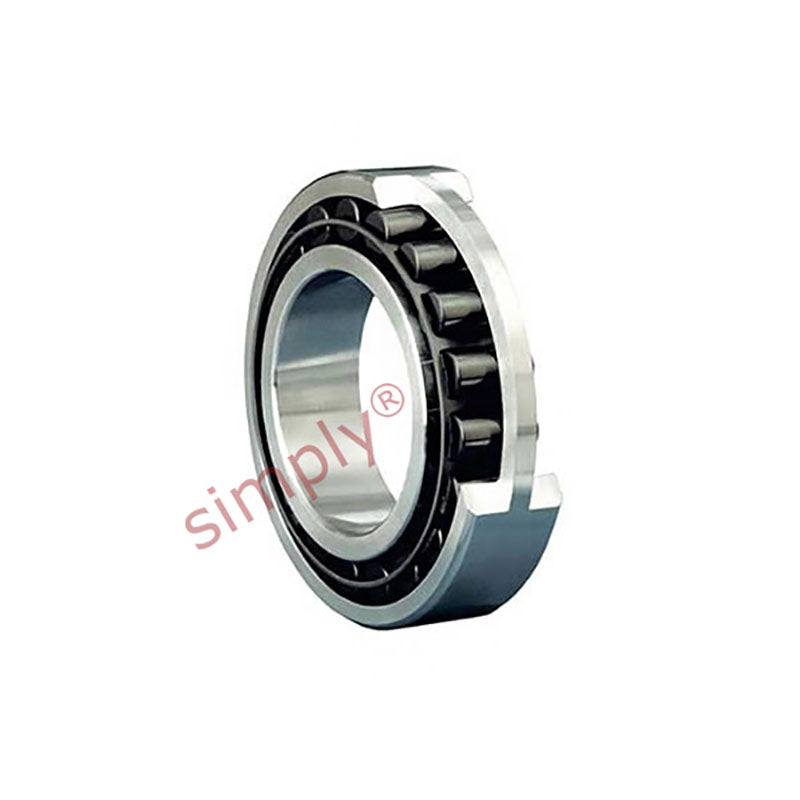

SKF C4044K30V Carb Toroidal Roller Bearing with Taper Bore 220x340x118mm Allow 7-10 Days

Name: SKF C4044K30V Carb Toroidal Roller Bearing with Taper Bore 220x340x118mm Allow 7-10 Days
Brand: SKF
SKU: C4044K30V-SKF
Availability: OutOfStock

Out of stock

Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

SKF Carb Toroidal Roller Bearings: These compact design bearings have a single row of barrel shaped (spherical) rollers which run on a common spherical outer and inner raceway. Their design offers many features such as self alignment, insensitivity to misalignment, tolerance to heavy radial and axial loads etc. They are manufactured with in both parallel and tapered bore variants and the ability to deliberately displace the position of the rings to each other permits accurate setting of the radial internal clearance.
Benefits: High radial and axial loads, misalignment, taper and parallel bore options

Brand / Quality:: SKF - High Quality
Inside Diameter:: 220mm
Outside Diameter:: 340mm
Width:: 118mm
Seals / Shields:: None

Technical

---	Dimensions
d	220mm
D	340mm
B	118mm
d2	251mm
D1	306mm
r1r2 min	3mm
s1	20mm
s2	10.1mm
da min	233mm
da max	250mm
Da max	327mm
ra max	2.5mm
---	Speeds and Loads
Dynamic load C	1930 kN
Static load Co	3250 kN
Fatigue load limit Pu	275 kN
Limiting speed	200 rpm
---	Factors
Misalignment factor k1	0.095
Operating clearance factor k2	0.113
---	Weights
Weight	40 kg
---	Matching Withdrawal Sleeves
Sleeve No.	<a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=AOH24044+sleeve>AOH24044</a>
