SKF C3034K Carb Toroidal Roller Bearing Taper Bore With AH3034 Sleeve 160x260x67mm Allow 7-10 Days
SKF C3034K Carb Toroidal Roller Bearing Taper Bore With AH3034 Sleeve 160x260x67mm Allow 7-10 Days
Out of stock
Description
Description
|
SKF Carb Toroidal Roller Bearings: These compact design bearings have a single row of barrel shaped (spherical) rollers which run on a common spherical outer and inner raceway. Their design offers many features such as self alignment, insensitivity to misalignment, tolerance to heavy radial and axial loads etc. They are manufactured with in both parallel and tapered bore variants and the ability to deliberately displace the position of the rings to each other permits accurate setting of the radial internal clearance. Benefits: High radial and axial loads, misalignment, taper and parallel bore options |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 160mm
- Outside Diameter:
- 260mm
- Width:
- 67mm
- Seals / Shields:
- None

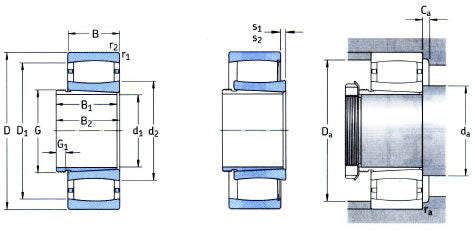

Technical
Technical
| d | 160mm |
|---|---|
| D | 260mm |
| B | 67mm |
| Dynamic load C | 750 kN |
| Static load Co | 1160 kN |
| Fatigue load limit Pu | 108 kN |
| Reference speed | 2000 rpm |
| Limiting speed | 2800 rpm |
| d2 | 200mm |
| D1 | 237mm |
| B1 | 85mm |
| B2 | 90mm |
| G | M180x3 |
| G1 | 17mm |
| r1r2 min | 2.1mm |
| s1 | 12.5mm |
| da min | 181mm |
| da max | 200mm |
| Sa min | 238mm |
| Da max | 249mm |
| Ca | 5.8mm |
| ra max | 2mm |
| Misalignment factor k1 | 0.105 |
| Operating clearance factor k2 | 0,112 |
| Weight | 15 kg |
