SKU: C-UKT319ED1/HE2319X-NTN

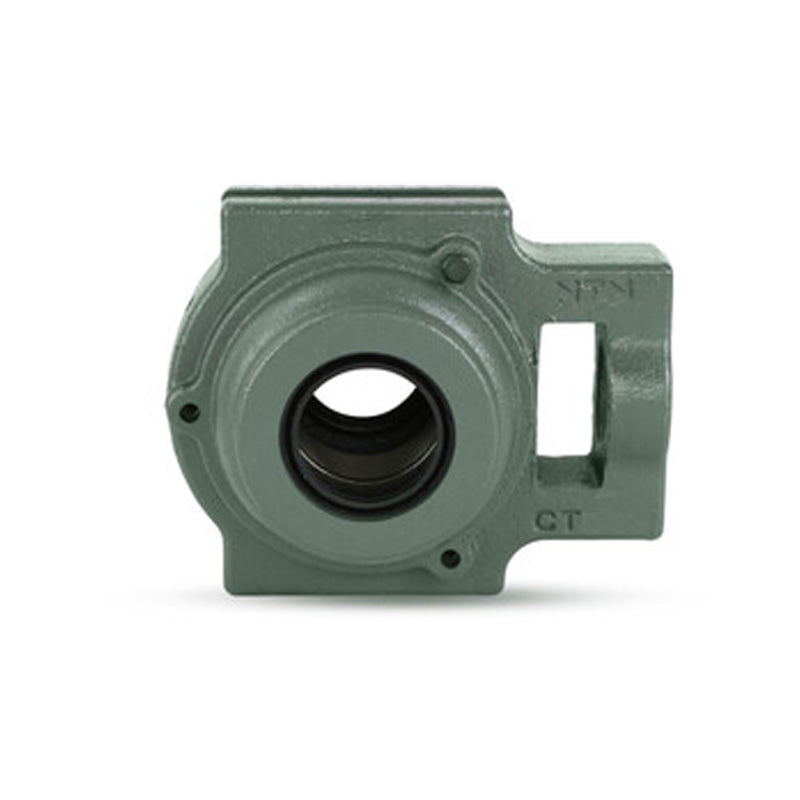

NTN C-UKT319ED1/HE2319X Imperial Cast Iron Take Up Unit with Cast Iron Cover - Open Version - Insert and Adaptor Sleeve Fits 3-1/4 inch Shaft - Allow 2-3 Days
NTN C-UKT319ED1/HE2319X Imperial Cast Iron Take Up Unit with Cast Iron Cover - Open Version - Insert and Adaptor Sleeve Fits 3-1/4 inch Shaft - Allow 2-3 Days
Out of stock
Description
Description
UKT300 Series Heavy Duty Take-Up Unit with Adaptor Sleeve Mounted: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and include a grease nipple to facilitate re-lubrication. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, with adaptor
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 82.55mm = 3.25 (3-1/4) inch
- Style:
- UKT
Technical
Technical
| Shaft diameter | 3-1/4 inch |
|---|---|
| N<sub>1</sub> | 1-13/16 inch |
| L<sub>2</sub> | 1-5/16 inch |
| H<sub>2</sub> | 6-1/2 inch |
| N<sub>2</sub> | 4-3/16 inch |
| N | 2-1/4 inch |
| L<sub>3</sub> | 7-3/32 inch |
| A<sub>1</sub> | 1.378 inch |
| H<sub>1</sub> | 9-29/64 inch |
| H | 10-5/8 inch |
| A<sub>2</sub> | 2-27/32 inch |
| A | 4-11/32 inch |
| r | 4-29/32 inch |
| L<sub>1</sub> | 7-3/4 inch |
| B<sub>1</sub> | 3.543 inch |
| L<sub>4</sub> | 12-7/8 inch |
| A<sub>5</sub> | 7-3/32 inch |
| Mass | 71 lbs |
