SKU: C-UCPX05-100D1-NTN

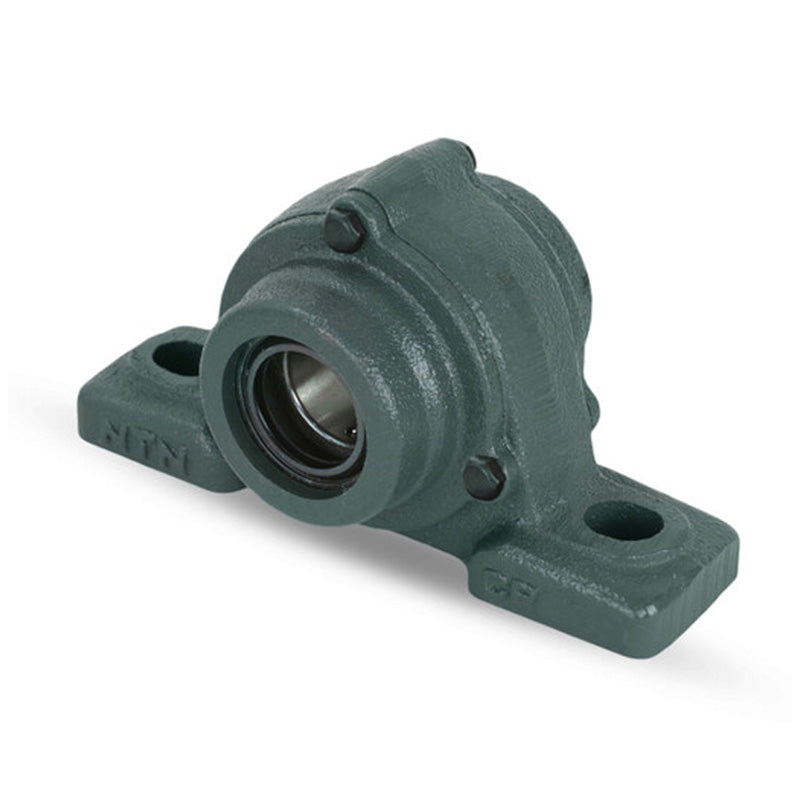

NTN C-UCPX05-100D1 Imperial Cast Iron Two Bolt Pillow / Plummer Block Housing with 1 inch Bore Insert with Cast Iron Cover - Open Version - Allow 2-3 Days
NTN C-UCPX05-100D1 Imperial Cast Iron Two Bolt Pillow / Plummer Block Housing with 1 inch Bore Insert with Cast Iron Cover - Open Version - Allow 2-3 Days
Out of stock
Description
Description
|
UCPX or MP Series Plummer / Pillow Housings: Bearing unit supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 25.4mm = 1 Inch
- Style:
- UCPX
- Bolt Hole Centres:
- 4-11/16 inch
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 1 inch |
| H | 1-3/4 inch |
| L | 6-1/4 inch |
| J | 4-11/16 inch |
| A | 2 inch |
| N | 21/32 inch |
| N<sub>1</sub> | 25/32 inch |
| H<sub>1</sub> | 23/32 inch |
| H<sub>2</sub> | 3-11/32 inch |
| L<sub>1</sub> | 1-31/32 inch |
| B | 1.5 inch |
| S | 0.626 inch |
| H<sub>3</sub> | 3-1/2 inch |
| A<sub>5</sub> | 2-15/16 inch |
| Fixing bolt | 1/2 inch |
| --- | Load rating |
| Dynamic load C<sub>r</sub> | 21.6 kN |
| Static load C<sub>0r</sub> | 11.3 kN |
| Fatigue load limit C<sub>u</sub> | 0.795 kN |
| --- | Unit information |
| Mass | 4 lbs |
