SKU: C-UCFL205-015D1-NTN

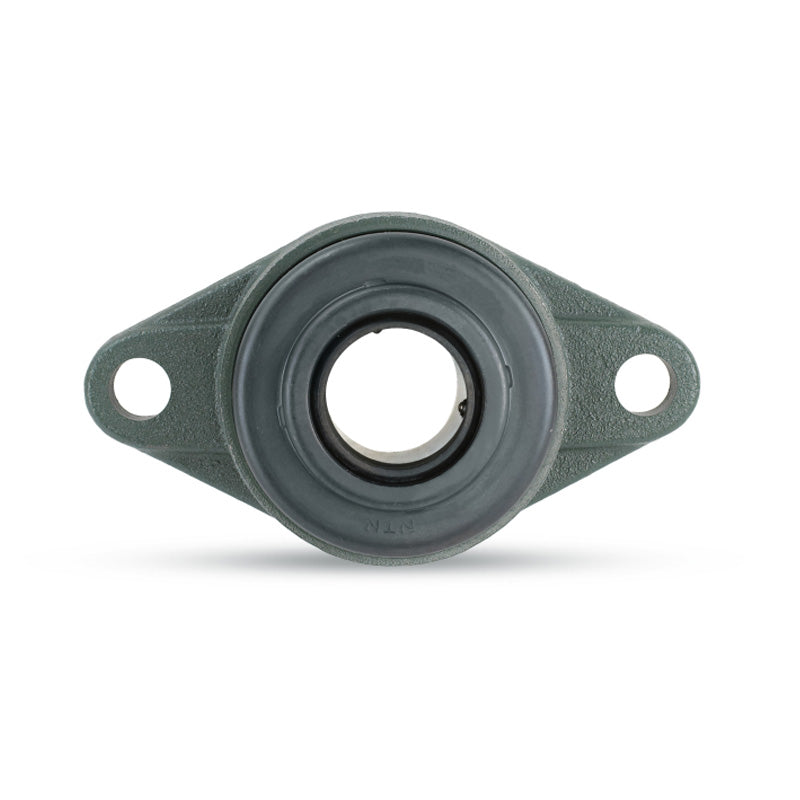

NTN C-UCFL205-015D1 Imperial Two Bolt Oval Cast Iron Flange Housing with 15/16 inch Bore Insert with Cast Iron Cover - Open Version - Allow 2-3 Days
NTN C-UCFL205-015D1 Imperial Two Bolt Oval Cast Iron Flange Housing with 15/16 inch Bore Insert with Cast Iron Cover - Open Version - Allow 2-3 Days
Out of stock
Description
Description
|
UCFL or SFT Series 2 Bolt Oval Cast Iron Housings: Bearing unit supplied with a fully sealed bearing insert fitted in the oval cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 23.81mm = 0.937 (15/16) inch
- Style:
- UCFL
- Bolt Hole Centres:
- 3-57/64 inch
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 15/16 inch |
| H | 5-1/8 inch |
| J | 3-57/64 inch |
| A<sub>2</sub> | 5/8 inch |
| A<sub>1</sub> | 1/2 inch |
| A | 1-1/16 inch |
| N | 5/8 inch |
| L | 2-11/16 inch |
| B | 1.3425 inch |
| S | 0.563 inch |
| A<sub>5</sub> | 2 inch |
| L<sub>1</sub> | 2-29/32 inch |
| L<sub>2</sub> | 1-11/32 inch |
| Fixing bolt | 1/2 inch |
| --- | Load rating |
| Dynamic load C<sub>r</sub> | 15.5 kN |
| Static load C<sub>0r</sub> | 7.85 kN |
| Fatigue load limit C<sub>u</sub> | 0.55 kN |
| --- | Unit information |
| Mass | 1.8 lbs |
