C77 Major Brand C-Section V-Belt

C Section Classic Type V Belts: Major Brand longer life classic 22x14mm (7/8x9/16 inch) belts, primarily used in industrial drives. Recommended for use in special applications particularly where reverse idlers need to be used due to their smaller thickness.
Benefits: Universal classical profile to fit ISO 4183/4184 pulleys, Low stretch polyester tensile member, Oil, ozone and abrasion resistant, Temperature resistance: -20deg C to +70deg C, Static conductive to ISO 1813
Note: Matched Pairs: All V Belts conform to DIN 2215 (For Classic V Belts Z, A, B, C, D, etc) and DIN 7753 (For Wedge Type Belts SPZ, SPA, SPB etc) and ISO 4184 and as such will match taking into account dimensional tolerances. If you require belts from the same batch, please contact our Sales Support Team who will gladly assist you further.

Brand / Quality:

Major Brand - High Quality

Belt Number:

C77

Inside Length Approx:

77 inch = 1956mm

Outside Length Approx:

81 inch = 2057mm

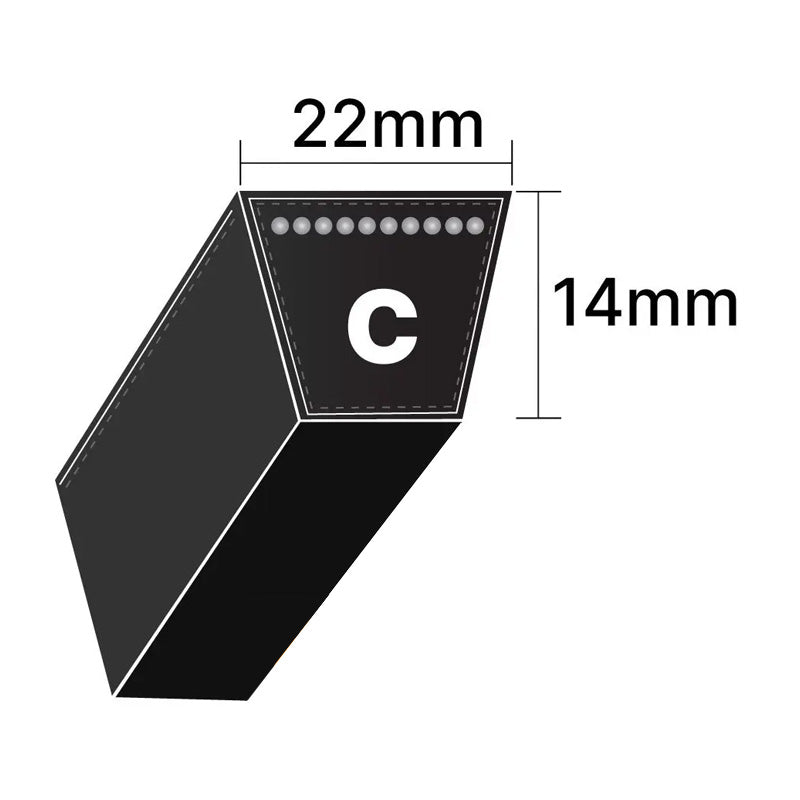

Belt Width Approx:

22mm

Belt Depth Approx:

14mm

Belt Datum Length Approx:

79.05 inch = 2008mm
