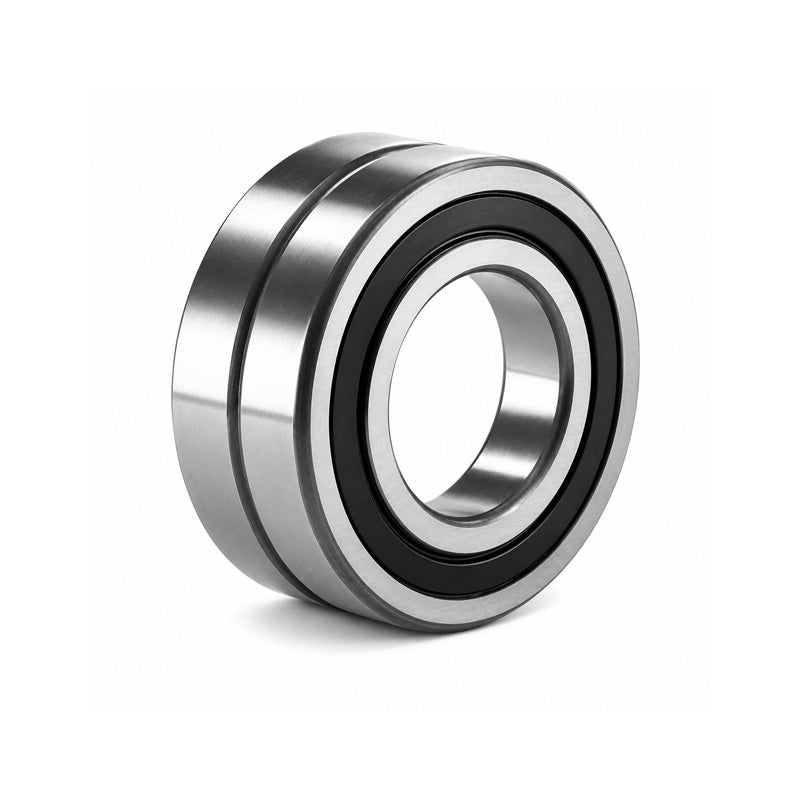

• SKF BS222102CSKVT143 Sealed Spherical Roller Bearing with Taper Bore 50x90x28mm
1 1

SKU: BS2-2210-2CSK/VT143-SKF

SKF BS222102CSKVT143 Sealed Spherical Roller Bearing with Taper Bore 50x90x28mm

SKF BS222102CSKVT143 Sealed Spherical Roller Bearing with Taper Bore 50x90x28mm
CHF 117.00 ex VAT
CHF 117.00 ex VAT
Sale Sold out

Equivalent to: BS222102RSK/VT143 22210K-2RS

In stock

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
SKF - High Quality
Inside Diameter:
50mm
Outside Diameter:
90mm
Width:
28mm
Seals / Shields:
Rubber Sealed
Clearance:
* Standard
Technical
--- Dimensions
d 50mm
D 90mm
B 28mm
D1 82.1mm
d2 58mm
r1r2 min 1.1mm
b 5.5mm
K 3mm
da min 57mm
da max 58mm
Da max 83mm
ra max 1mm
--- Speeds, Loads and Weights
Dynamic load C 104 kN
Static load Co 108 kN
Fatigue load limit Pu 11.8 kN
Limiting speed 1900 rpm
Weight 0.7 kg
--- Factors
Calculation factor e 0.24
Calculation factor Y1 2.8
Calculation factor Y2 4.2
Calculation factor Y0 2.8
--- Matching Adaptor Sleeves
Sleeve No. <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=H310E+sleeve>H310E</a>
