SKU: BGSB634152A.MB

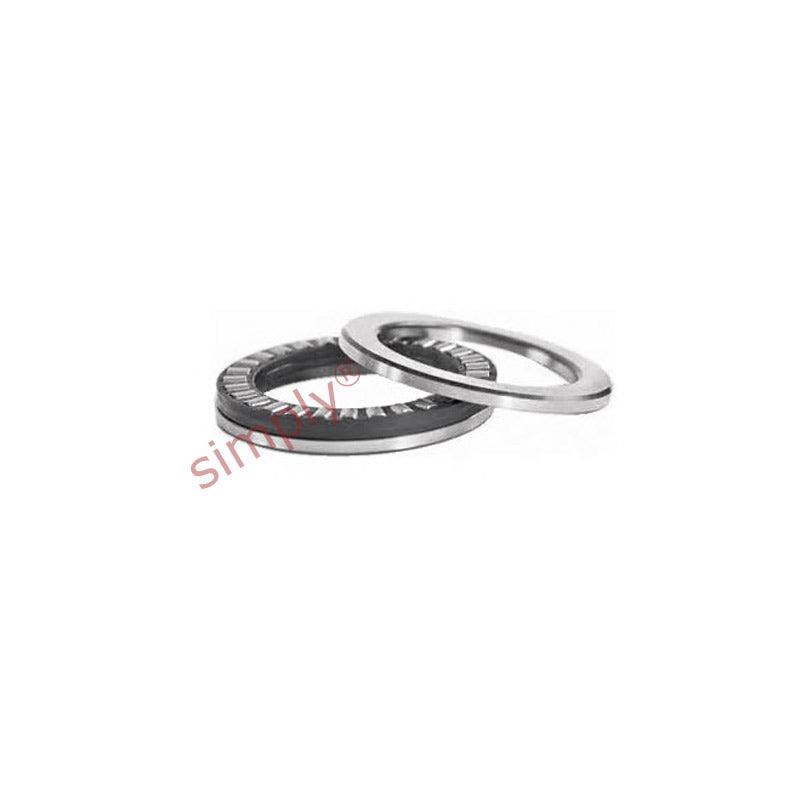

Major Brand BGSB634152A Cylindrical Roller Thrust Bearing 1280x1400x60mm
Major Brand BGSB634152A Cylindrical Roller Thrust Bearing 1280x1400x60mm
Out of stock
Share this product
Description
Description
|
Cylindrical Roller Thrust Bearings: Ideally suited to arrangements that require support for heavy radial loads. They are relatively insensitive to shock loads in operation and are reasonably stiff in operation requiring little axial space. The cylindrical surface of the rollers are slightly relieved towards the inner end to relieve / eliminate edge stresses. They are separable by design to facilitate ease of mounting and assembly. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 1280mm
- Outside Diameter:
- 1400mm
- Width:
- 60mm
Technical
Technical
| d | 1280mm |
|---|---|
| D | 1400mm |
| H | 60mm |
| Dynamic load C | 1700 kN |
| Static load Co | 19000 kN |
| Fatigue load limit Pu | 950 kN |
| Min load factor A | 29 |
| Reference speed | 170 rpm |
| Limiting speed | 340 rpm |
| Weight | 102 kg |
