SKU: BB-6000-B180-10-ES-D

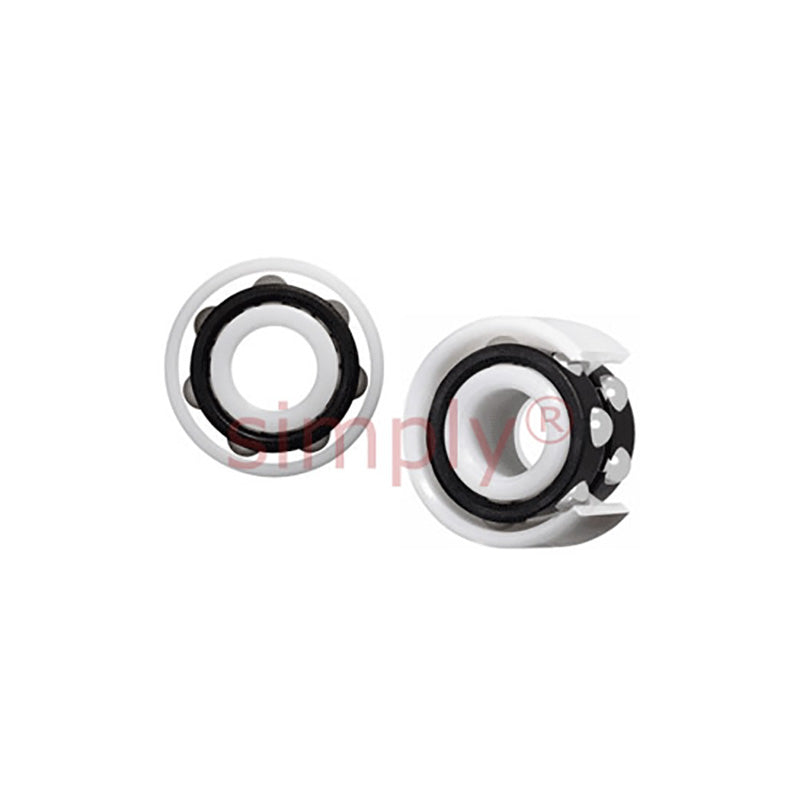

xiros xirodur BB6000B18010ESD Double Row Radial Groove Ball Bearing with PA Cage and Stainless Steel Balls 10x26x14mm - Allow 2-3 Days
xiros xirodur BB6000B18010ESD Double Row Radial Groove Ball Bearing with PA Cage and Stainless Steel Balls 10x26x14mm - Allow 2-3 Days
Out of stock
Description
Description
|
IGUS xiros® xirodur® B180 Double Row Polymer Ball Bearings: These open type double row radial deep groove ball bearings consist of polymer cages and stainless steel balls. They are for use with temperatures up to +80 deg C. The specially developed material xirodur® B180 provides significantly longer life times at a lower cost. These bearings support higher loads compared to single row bearings and are tribologically optimised. These bearings are ideal for applications that require lubricant-free ball bearings and maintenance-free dry operation. They are also suitable for applications which require corrosion resistance, non-magnetic ball bearings or a light weight bearing. Benefits: Lubrication- and maintenance-free, washable, corrosion-resistant, electrically insulating. |
- Brand / Quality:
- Igus - High Quality
- Inside Diameter:
- 10mm
- Outside Diameter:
- 26mm
- Width:
- 14mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical

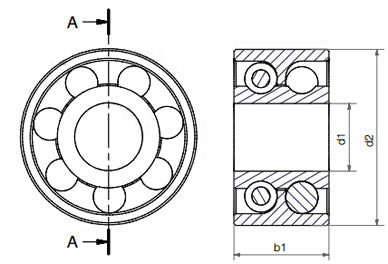

| d1 | 10mm |
|---|---|
| d2 | 26mm |
| b1 | 14mm |
| Max static load capacity | 800 N |
| Static load capacity | 160 N |
| Dynamic load capacity | 225 N |
| Max speed | 850 rpm |
| Race | B180 |
| Cage | PA |
| Ball material | Stainless Steel |
