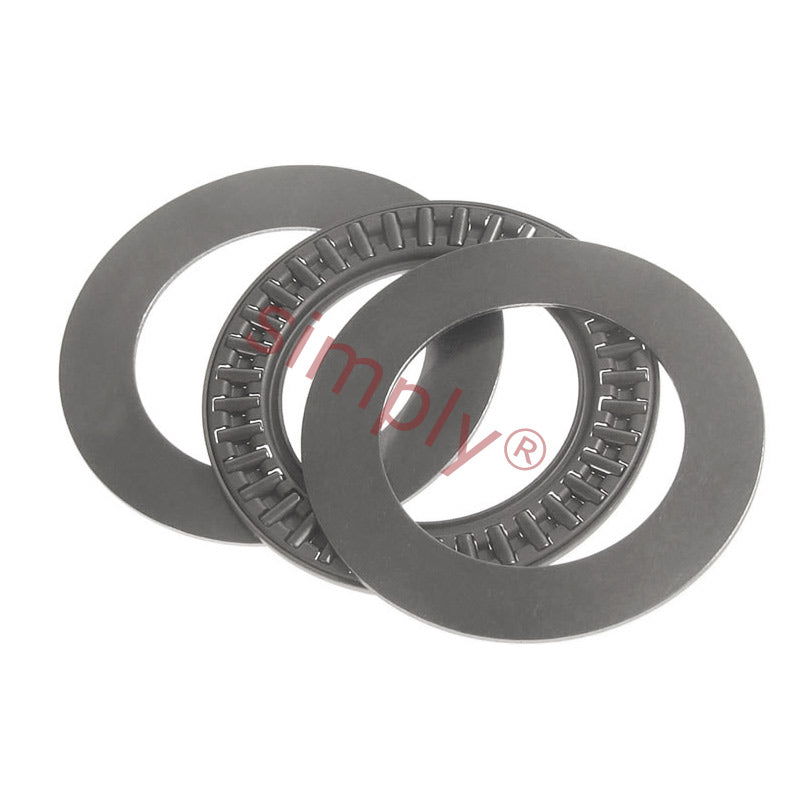

AXK6085 Major Branded Needle Roller Cage with 2 AS6085 Washers 60x85x5mm

Name: AXK6085 Major Branded Needle Roller Cage with 2 AS6085 Washers 60x85x5mm
Brand: Major Brand
SKU: AXK6085-MB-AS6085-MB
Price: 17.00 CHF
Availability: InStock

CHF 17.00 ex VAT

Sale Sold out

In stock

Price Break

10+ CHF 13.53

19+ CHF 12.77

29+ CHF 12.62

39+ CHF 12.47

49+ CHF 12.31

74+ CHF 12.16

99+ CHF 11.40

199+ CHF 11.25

249+ CHF 11.10

499+ CHF 10.95

999+ CHF 10.64

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

AXK Series Needle Roller Thrust Bearings Complete: Needle roller and cage thrust assemblies complete with 2 AS series washers are a low profile high load thrust bearing assembly, they are made up of a uniform cage which reliably guides a large quantity of needle rollers, the rollers are slightly relieved towards their outer edge to enable uniform load distribution and prevents any edge damage occurrence.
Benefits: Cost effective thrust solution, wide range, low profile, high load bearing

Brand / Quality:: Major Brand - High Quality
Inside Diameter:: 60mm
Outside Diameter:: 85mm
Width:: 5mm

Technical

d	60mm
D	85mm
Dw	5mm total (2 washers at 1mm each)
Ea	65mm
Eb	83mm
Dynamic load	37500 N
Static load	232000 N
Fatigue load limit Pu	28500 N
Speed in grease	1300 rpm
Speed in oil	1800 rpm
Weight (assembly)	33 g
d1	85mm
D	85mm
D1	62mm
B	4.75mm
