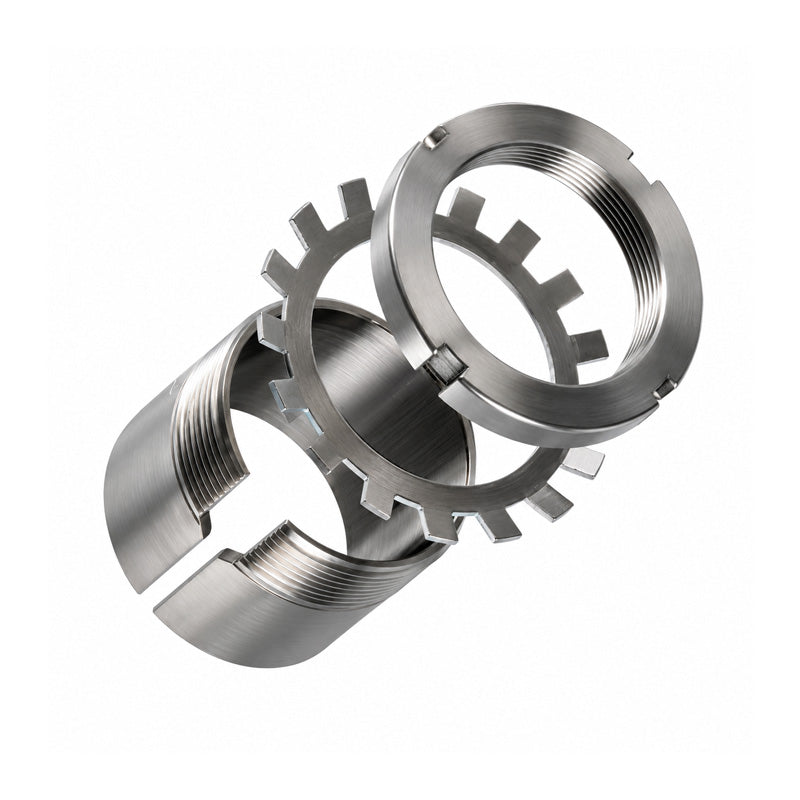

SKF AOH31750 Withdrawal Sleeve for 710mm shaft

Name: SKF AOH31750 Withdrawal Sleeve for 710mm shaft
Brand: SKF
SKU: AOH31750-SKF
Availability: OutOfStock

Out of stock

Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

SKF Withdrawal Sleeves: Can be used to mount bearings with a tapered bore onto a cylindrical seating. They can be used on plain shafts allowing the bearing to be positioned as required and locked into place or on stepped shafts with a seating ring to set the bearing off a shoulder before locking it into position. Differing from adaptor sleeves, they are pushed into the bearing by a locknut on the threaded shaft, they then permit a larger locknut to be used to withdraw the sleeve from within the bearing for ease of dismantling
Benefits: Re-useable, adjustable, positive location, easy to dismount

Brand / Quality:: SKF - High Quality
Inside Diameter:: 710mm
Outside Diameter:: 750mm
Width:: 425mm

Technical

---	Dimensions
d1	710mm
d	750mm
B1	425mm
B2	441mm
G	Thread 800x7mm
G1	60mm
G2	G1/4mm
A	15mm
Weight	238 kg
---	Assembly Parts
Sleeve	AOH31750
Nut	HM31/800
Hydraulic Nut	HMV160E
