SKU: AN19-SKF

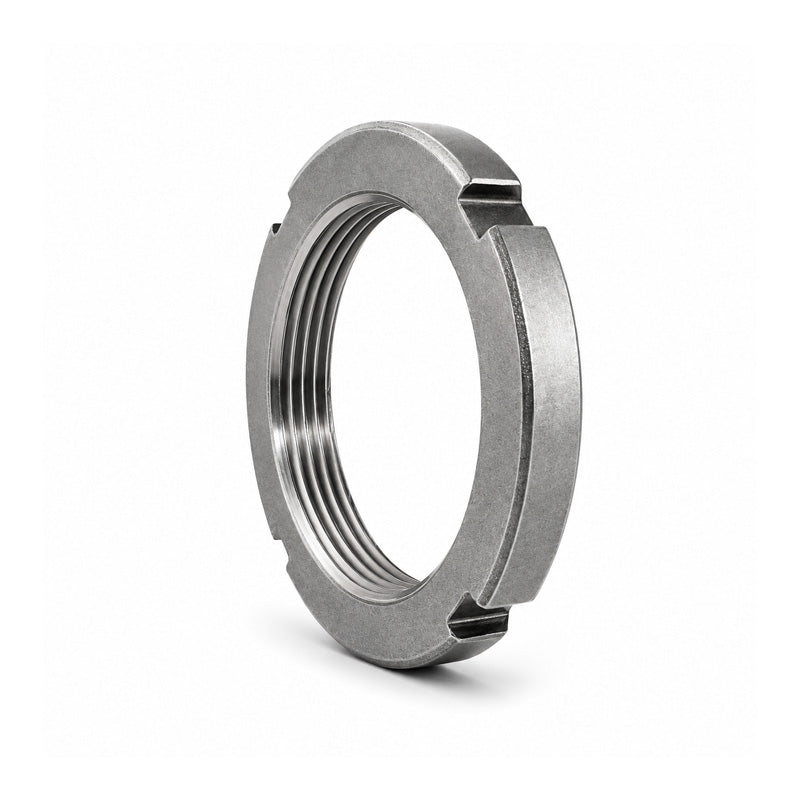

SKF AN19 Lock Nut (Lock Washer Type) 3.73x4.563x4.943 inch
SKF AN19 Lock Nut (Lock Washer Type) 3.73x4.563x4.943 inch
Out of stock
Share this product
Description
Description
SKF Lock Nuts: Supplied in a wide range of sizes and are often referred to as shaft nuts, lock nuts or withdrawal nuts depending on their use. They are used to securely locate bearings and other components onto shafts and facilitate the mounting of tapered bore bearings onto shafts with the use of adaptor sleeves or withdrawal sleeves.
Benefits: Efficient, secure, inexpensive, removable and re-usable
- Brand / Quality:
- SKF - High Quality
- Thread Size:
- 3.73 inch
Technical
Technical

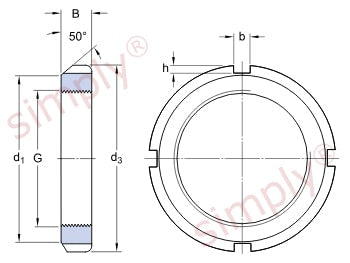

| G | 3.73 inch |
|---|---|
| Threads per inch | 12 |
| d<sub>1</sub> | 4.563 inch |
| d<sub>3</sub> max | 4.943 inch |
| B | 0.729 inch |
| b | 0.36 inch |
| h | 0.166 inch |
| Static axial load carrying capacity | 55078 lbf |
| Mass | 0.7575 kg |
| Associated spanner | HN18-20 |
| Associated locking device | W19 |
