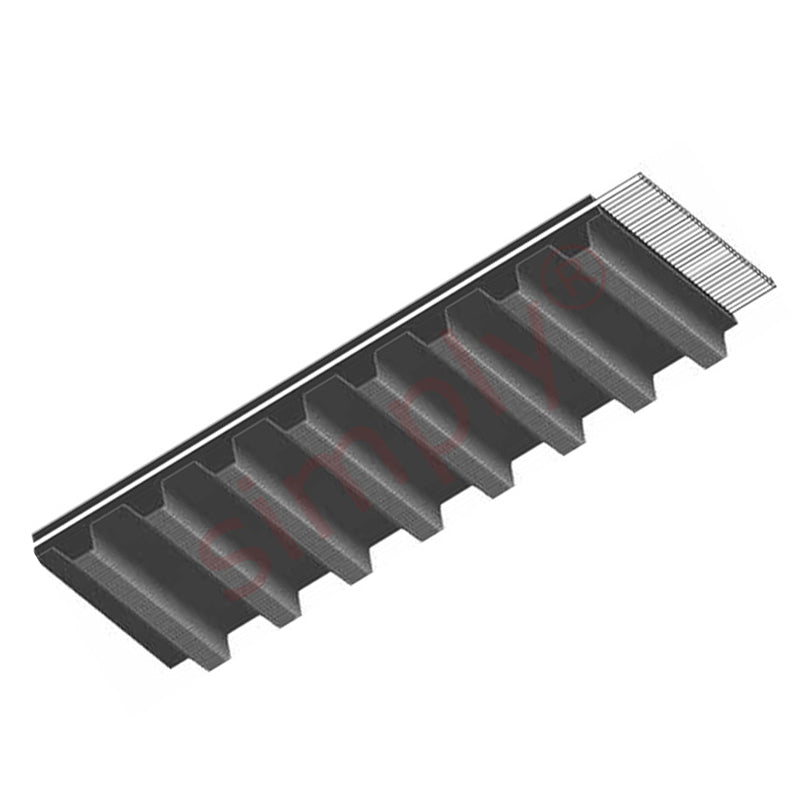

8T2/160 ContiTech Synchroflex Toothed Belt 8mm Wide 2mm Pitch 80 Teeth

SKU: 8T2/160

8T2/160 ContiTech Synchroflex Toothed Belt 8mm Wide 2mm Pitch 80 Teeth

CHF 14.00 ex VAT
CHF 14.00
ex VAT
Not in stock

Quantity Price Breaks

3 CHF 12.46
5 CHF 11.76
9 CHF 11.62
19 CHF 11.48
49 CHF 11.34
74 CHF 11.20
99 CHF 10.50
199 CHF 10.36
249 CHF 10.22
499 CHF 10.08
999 CHF 9.80
Return policy
90-Days Free Returns
Learn More
Low cost shipping
International Delivery
Learn More
8T2/160 ContiTech Synchroflex Toothed Belt 8mm Wide 2mm Pitch 80 Teeth
SKU: 8T2/160

8T2/160 ContiTech Synchroflex Toothed Belt 8mm Wide 2mm Pitch 80 Teeth

CHF 14.00 ex VAT
CHF 14.00
ex VAT

Description

Synchronous Drive Belts: Power transmission belts have become a valuable element of synchronous transmission throughout the entire field of drive technology. They enable purpose-made solutions to be realized effectively and economically.
Thanks to their high flexibility synchronous drive belts enable low-cost design, even with difficult drive system requirements such as high transmission ratios, high belt speeds, small pulley diameters and back tensioning rollers.
Benefits: Synchronised drive, Outstanding resistance to fatigue and deformation, as well as a good resistance to environmental influences, temperature extremes and ageing, are all factors which give the user high service reliability and freedom from maintenance.

Technical

No Teeth = 80
Width = 8mm
Tooth Pitch t = 2mm
Belt Length = 160mm
Belt Thickness h< = sub>
s< = /sub>
= 1.1mm
Tooth Height h< = sub>
t< = /sub>
= 0.5mm
Flank Angle = 40 deg
Tension member loadings = 86 Fadm(N)
