SKU: 87506-FAG

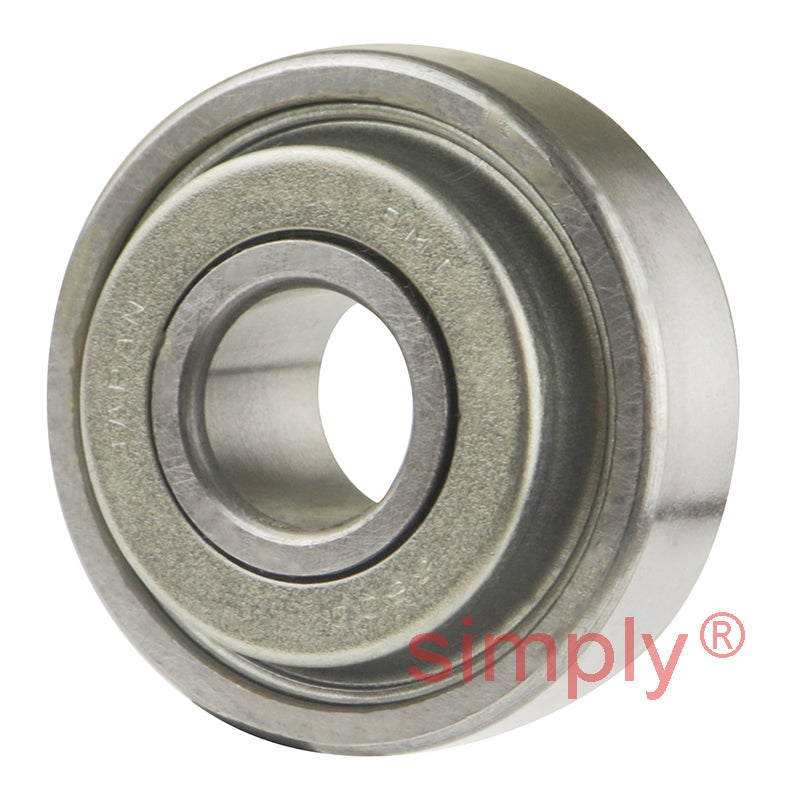

FAG 87506 Deep Groove Ball Bearing with Extended Inner Ring Felt Front Seal and Steel Back Seal 30x62x20mm
FAG 87506 Deep Groove Ball Bearing with Extended Inner Ring Felt Front Seal and Steel Back Seal 30x62x20mm
Out of stock
Description
Description
|
Specialist Shielded Ball Bearing: This bearing consist of chrome steel ball bearings and raceways with an extended inner raceway, additionally the inner raceway is recessed on the back of the bearing. Please refer to the technical tab for dimensions. Benefits: Felt / Metal shielded on the front, extended inner race, metal shielded on the back. |
- Brand / Quality:
- FAG - High Quality
- Inside Diameter:
- 30mm
- Outside Diameter:
- 62mm
- Width:
- 20mm
Technical
Technical
| B | 30mm = 1.1811 inch |
|---|---|
| D | 62mm = 2.4409 inch |
| W | 20mm = 0.787 inch |
| Tolerance +0.0000 to minus | 0.0004 inch |
| Wo | 0.63 inch |
| Wi | 0.748 inch |
| r | 0.04 inch |
| No. of balls | 9 |
| Ball diameter | 3/8 inch |
| Static load | 1524 kN |
| Dynamic load | 1023 kN |
| Weight | 0.22 kg |
