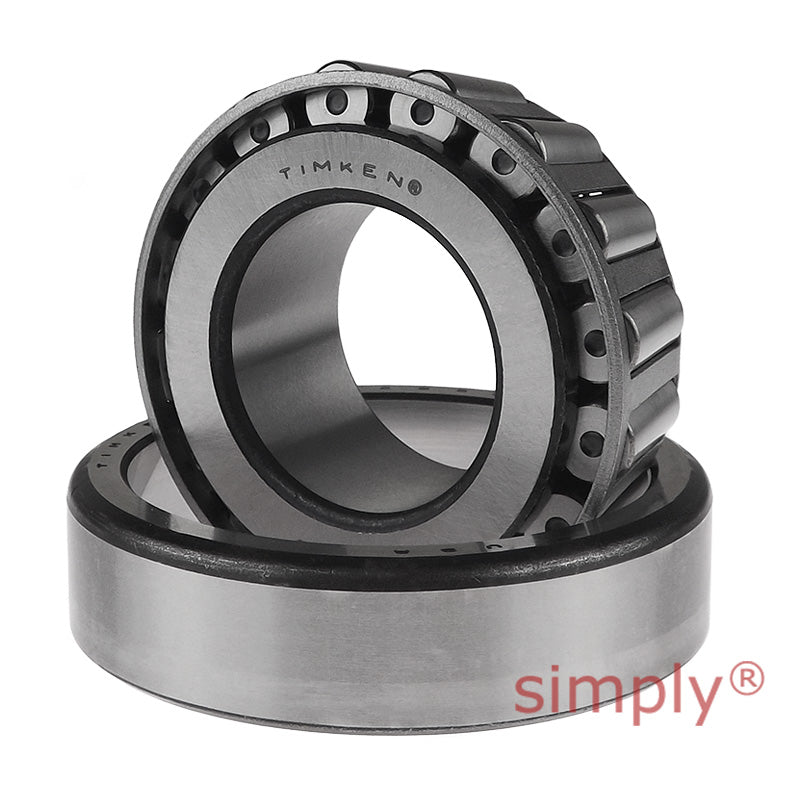

• Timken 84115/84155 TS Single-Row Taper Roller Bearing 11.5x15.5x2.5 inch
1 1

SKU: 84115/84155-TIM

Timken 84115/84155 TS Single-Row Taper Roller Bearing 11.5x15.5x2.5 inch

Timken 84115/84155 TS Single-Row Taper Roller Bearing 11.5x15.5x2.5 inch
CHF 5,180.00 ex VAT
CHF 5,180.00 ex VAT
Sale Sold out

In stock

Price Break
10+ CHF 4,145.69
20+ CHF 3,912.79
30+ CHF 3,866.21
40+ CHF 3,819.63
50+ CHF 3,773.05
75+ CHF 3,726.47
100+ CHF 3,493.56
200+ CHF 3,446.98
250+ CHF 3,400.40
500+ CHF 3,353.82
1000+ CHF 3,260.66

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
JL_TAPER_DESC
Brand / Quality:
Timken - High Quality
Inside Diameter:
292.1mm = 11.5 (11-1/2) inch
Outside Diameter:
393.7mm = 15.5 (15-1/2) inch
Width:
63.5mm = 2.5 (2-1/2) inch
Technical
d 292.1mm = 11.5 inch
D 393.7mm = 15.5 inch
T 63.5mm = 2.5 inch
Dynamic (1) C1 468000N
Factors (5) e 0.61
Factors (5) Y 0.98
Dynamic (2) C90 121000N
Dynamic (2) Ca90 127000N
Factors (5) K 0.96
Static C0 997000N
Bearing B 50.8mm = 2 inch
Bearing C 44.45mm = 1.75 inch
Bearing a(3) 36.6mm = 1.44 inch
Shaft max shaft fillet radius R(4) 3.5mm = 0.14 inch
Shaft backing shoulder diameter da 309mm = 12.17 inch
Shaft backing shoulder diameter db 313mm = 12.32 inch
Housing backing shoulder diameter r(4) 6.4mm = 0.25 inch
Housing backing shoulder diameter Da 378mm = 14.88 inch
Housing backing shoulder diameter Db 363mm = 14.29 inch
Cage Aa 13.9mm = 0.55 inch
Cage Ab 2.8mm = 0.11 inch
G1 1230
G2 302
Cg 0.166
