SKU: 80-A-30-06-ROLL-REN

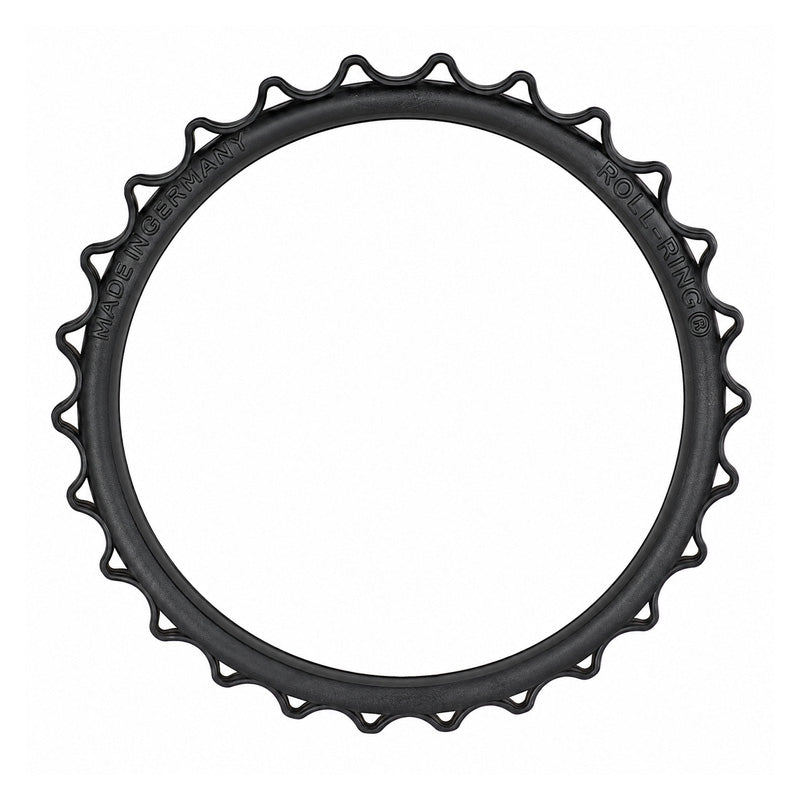

Renold 30 Tooth 80-A Roll Ring for 1 inch Pitch - Ambient Temperature +18 to+176°F
Renold 30 Tooth 80-A Roll Ring for 1 inch Pitch - Ambient Temperature +18 to+176°F
Out of stock
Description
Description
|
Renold Roll Ring: The ROLL-RING® is designed to deform to an elliptical shape, when the drive is in use. This is due to ROLL-RING® being compressed completely absorbs any slack in the system. ROLL-RING® chain tensioners are maintenance free and can be fitted to a wide variety of chain drives with no installation downtime. The ROLL-RING® has been modified to the requirements of higher operating temperatures. |
- Brand / Quality:
- Renold - High Quality
- Teeth:
- 30
- Pitch:
- 1 inches
Technical
Technical
| do | 9.528 inch |
|---|---|
| di | 7.874 inch |
| s | 1.969 inch |
| A | 12.402 inch |
| D = do-s | 7.559 inch |
| Chain Dimension - p x b1- inches | 1x5/8 |
| Max Static Expansive Force - lbs** | 26.52 |
| Maximum Chain Speed ft/min | 827 |
| Ambient Temperature (°F) | +18 to+176 |
| Weight (lbs) | 0.348 |
