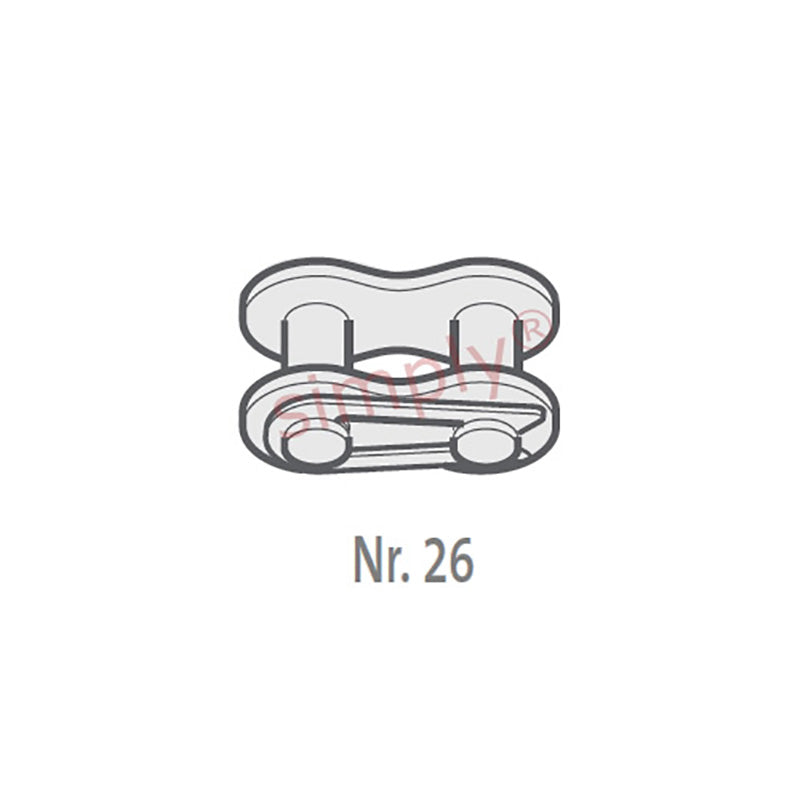

• Renold SD 80-1-NO26 ANSI / AS Simplex Chain Connecting Link With Spring Clip 1 inch Pitch
1 1

SKU: 80-1-SD-NO26-RENOLD

Renold SD 80-1-NO26 ANSI / AS Simplex Chain Connecting Link With Spring Clip 1 inch Pitch

Renold SD 80-1-NO26 ANSI / AS Simplex Chain Connecting Link With Spring Clip 1 inch Pitch
CHF 10.00 ex VAT
CHF 10.00 ex VAT
Sale Sold out

In stock

Price Break
2+ CHF 7.95
5+ CHF 7.51
10+ CHF 7.42
29+ CHF 7.33
49+ CHF 7.24
75+ CHF 7.15
100+ CHF 6.70
200+ CHF 6.61
250+ CHF 6.52
500+ CHF 6.43
1000+ CHF 6.25

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
ANSI_NO26S_DESC
Brand / Quality:
Renold - High Quality
Pitch:
25.4mm = 1 inch
Technical
Pitch (A) 1 inch
Pitch (A) 25.4mm
Inside Width min (B) 15.75mm
Roller Diameter max (C) 15.88mm
Plate Height max (D) 24.1mm
Plate Width Inner max (E) 3.1mm
Plate Width Outer max (F) 3.1mm
Pin Diameter max (G) 7.92mm
Pin Length max (H1) 32.8mm
Connecting Link Extension max (J) 2.1mm
ISO606 Tensile Strength min 55600 N
Weight 0.02kg/m
