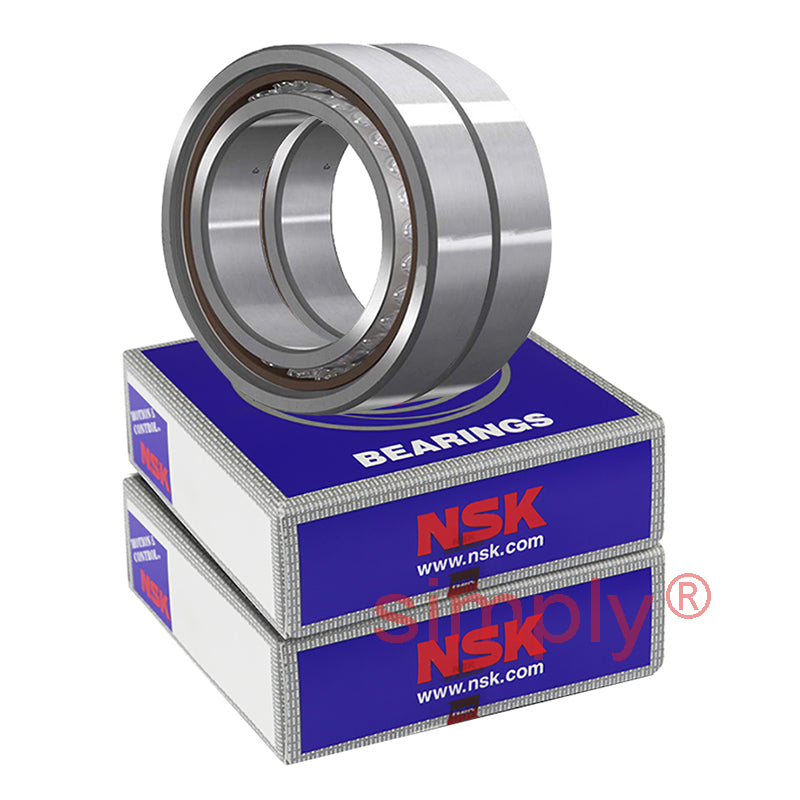

• NSK 7948CTRDUELP3 Super Precision Angular Contact Spindle Bearing 240x320x38mm (Set of 2)
1 1

SKU: 7948CTRDUELP3-NSK

NSK 7948CTRDUELP3 Super Precision Angular Contact Spindle Bearing 240x320x38mm (Set of 2)

NSK 7948CTRDUELP3 Super Precision Angular Contact Spindle Bearing 240x320x38mm (Set of 2)
CHF 7,246.00 ex VAT
CHF 7,246.00 ex VAT
Sale Sold out

In stock

Price Break
3+ CHF 5,799.21
5+ CHF 5,473.41
10+ CHF 5,408.25
25+ CHF 5,343.09
49+ CHF 5,277.93
74+ CHF 5,212.77
99+ CHF 4,886.97
199+ CHF 4,821.81
249+ CHF 4,756.65
499+ CHF 4,691.49
999+ CHF 4,561.17

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
5ZG1TM6ZIA
Brand / Quality:
NSK - High Quality
Inside Diameter:
240mm
Outside Diameter:
320mm
Width:
38mm
Seals / Shields:
None
Style:
Universal Matched Pair of Bearings
Contact Angle:
15 Degree contact angle
Bearing Preload:
Extra light preload
Technical
--- Bearing dimensions
d 240mm
D 320mm
B 38mm
r<sub>min</sub> 2.1mm
r1<sub>min</sub> 1.1mm
--- Loads angles and speeds
C<sub>r</sub> 210Kn
C<sub>or</sub> 286kN
Axial load Kn 166 kN
Contact angle 15 degrees
Factor f<sub>o</sub> 16.8
Effective diameter 56.5mm
Max speed in grease 3800 rpm
Max speed in oil 5900 rpm
--- Fitting dimensions
d<sub>a min</sub> 252mm
D<sub>a max</sub> 308mm
D<sub>b max</sub> 313mm
r<sub>a max</sub> 2mm
r<sub>b max</sub> 1mm
Weight 16.6kg
