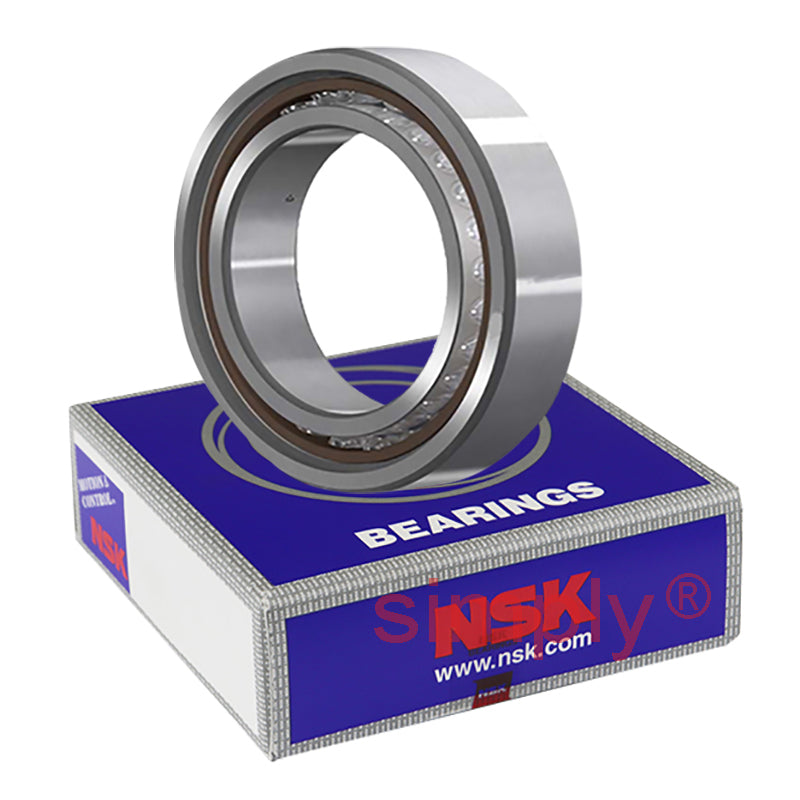

• NSK 7930A5TRSULP3 Super Precision Angular Contact Spindle Bearing 150x210x28mm
1 1

SKU: 7930A5TRSULP3-NSK

NSK 7930A5TRSULP3 Super Precision Angular Contact Spindle Bearing 150x210x28mm

NSK 7930A5TRSULP3 Super Precision Angular Contact Spindle Bearing 150x210x28mm
CHF 1,131.00 ex VAT
CHF 1,131.00 ex VAT
Sale Sold out

In stock

Price Break
3+ CHF 887.03
5+ CHF 837.19
10+ CHF 827.23
25+ CHF 817.26
49+ CHF 807.29
74+ CHF 797.33
99+ CHF 747.50
199+ CHF 737.53
249+ CHF 727.56
499+ CHF 717.60
999+ CHF 697.66

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
FOIYY32A5T
Brand / Quality:
NSK - High Quality
Inside Diameter:
150mm
Outside Diameter:
210mm
Width:
28mm
Seals / Shields:
None
Style:
Single Universal Matchable Bearing
Contact Angle:
25 Degree contact angle
Bearing Preload:
Light preload
Technical
--- Bearing dimensions
d 150mm
D 210mm
B 28mm
r<sub>min</sub> 2mm
r1<sub>min</sub> 1mm
--- Loads angles and speeds
C<sub>r</sub> 101Kn
C<sub>or</sub> 115kN
Axial load Kn 84.5 kN
Contact angle 25 degrees
Factor f<sub>o</sub> -
Effective diameter 56mm
Max speed in grease 5600 rpm
Max speed in oil 8400 rpm
--- Fitting dimensions
d<sub>a min</sub> 160mm
D<sub>a max</sub> 200mm
D<sub>b max</sub> 204mm
r<sub>a max</sub> 2mm
r<sub>b max</sub> 1mm
Weight 2.97kg
