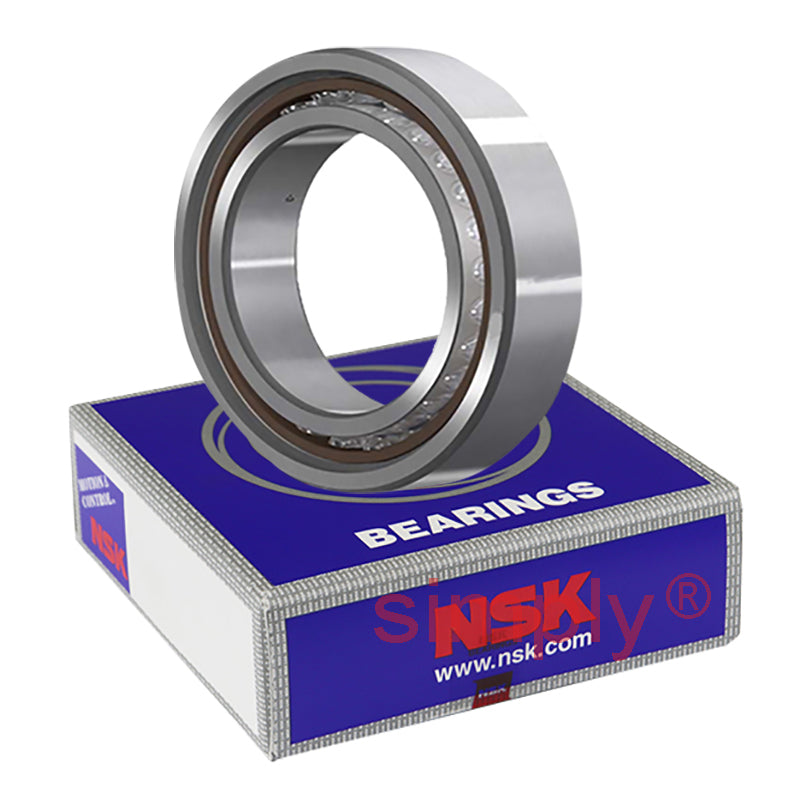

• NSK 7919A5TRV1VSUMP3 Super Precision Sealed Angular Contact Spindle Bearing 95x130x18mm
1 1

SKU: 7919A5TRV1VSUMP3-NSK

NSK 7919A5TRV1VSUMP3 Super Precision Sealed Angular Contact Spindle Bearing 95x130x18mm

NSK 7919A5TRV1VSUMP3 Super Precision Sealed Angular Contact Spindle Bearing 95x130x18mm
CHF 592.00 ex VAT
CHF 592.00 ex VAT
Sale Sold out

In stock

Price Break
3+ CHF 464.45
5+ CHF 438.35
10+ CHF 433.14
25+ CHF 427.92
49+ CHF 422.70
74+ CHF 417.48
99+ CHF 391.39
199+ CHF 386.17
249+ CHF 380.95
499+ CHF 375.73
999+ CHF 365.30

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
FOIYY32A5T
Brand / Quality:
NSK - High Quality
Inside Diameter:
95mm
Outside Diameter:
130mm
Width:
18mm
Seals / Shields:
Rubber Sealed
Style:
Single Universal Matchable Bearing
Contact Angle:
25 Degree contact angle
Bearing Preload:
Medium preload
Technical
--- Bearing dimensions
d 95mm
D 130mm
B 18mm
r<sub>min</sub> 1.1mm
r1<sub>min</sub> 0.6mm
--- Loads angles and speeds
C<sub>r</sub> 42Kn
C<sub>or</sub> 45.5kN
Axial load Kn 35 kN
Contact angle 25 degrees
Factor f<sub>o</sub> -
Effective diameter 35.2mm
Max speed in grease 8900 rpm
Max speed in oil 13400 rpm
--- Fitting dimensions
d<sub>a min</sub> 102mm
D<sub>a max</sub> 123mm
D<sub>b max</sub> 125mm
r<sub>a max</sub> 1mm
r<sub>b max</sub> 0.6mm
Weight 0.603kg
