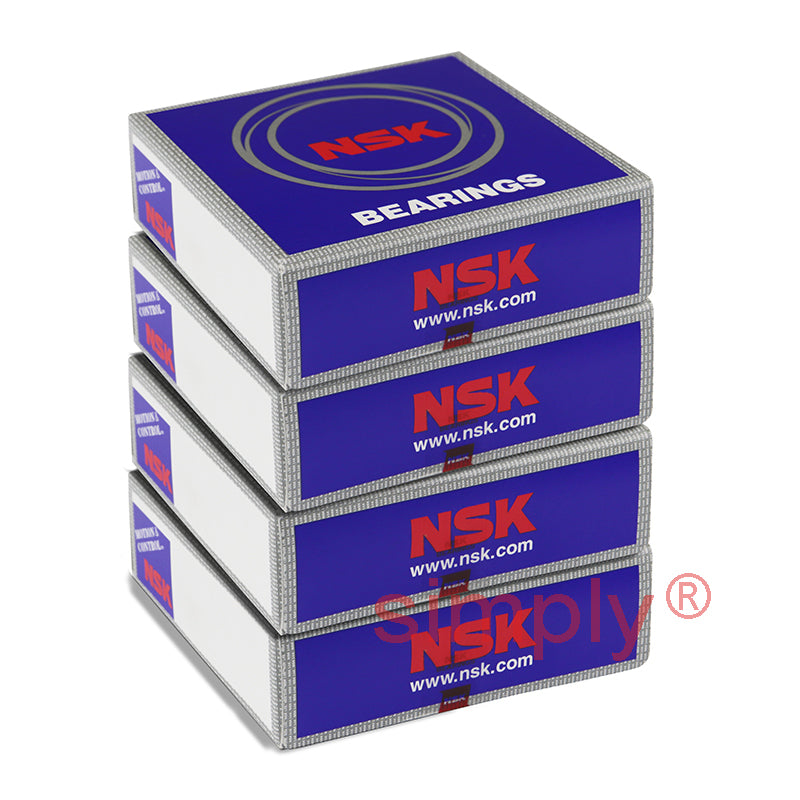

• NSK 7917A5TRQUMP3 Super Precision Angular Contact Spindle Bearing 85x120x18mm (Set of 4)
1 1

SKU: 7917A5TRQUMP3-NSK

NSK 7917A5TRQUMP3 Super Precision Angular Contact Spindle Bearing 85x120x18mm (Set of 4)

NSK 7917A5TRQUMP3 Super Precision Angular Contact Spindle Bearing 85x120x18mm (Set of 4)
CHF 1,371.00 ex VAT
CHF 1,371.00 ex VAT
Sale Sold out

In stock

Price Break
3+ CHF 1,075.42
5+ CHF 1,015.01
10+ CHF 1,002.92
25+ CHF 990.84
49+ CHF 978.76
74+ CHF 966.67
99+ CHF 906.26
199+ CHF 894.17
249+ CHF 882.09
499+ CHF 870.00
999+ CHF 845.84

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
RGR72E2J9J
Brand / Quality:
NSK - High Quality
Inside Diameter:
85mm
Outside Diameter:
120mm
Width:
18mm
Seals / Shields:
None
Style:
Universal Matched Quad Bearing Set
Contact Angle:
25 Degree contact angle
Bearing Preload:
Medium preload
Technical
--- Bearing dimensions
d 85mm
D 120mm
B 18mm
r<sub>min</sub> 1.1mm
r1<sub>min</sub> 0.6mm
--- Loads angles and speeds
C<sub>r</sub> 38.5Kn
C<sub>or</sub> 38.5kN
Axial load Kn 30 kN
Contact angle 25 degrees
Factor f<sub>o</sub> -
Effective diameter 32.9mm
Max speed in grease 9800 rpm
Max speed in oil 14700 rpm
--- Fitting dimensions
d<sub>a min</sub> 92mm
D<sub>a max</sub> 113mm
D<sub>b max</sub> 115mm
r<sub>a max</sub> 1mm
r<sub>b max</sub> 0.6mm
Weight 2.164kg
