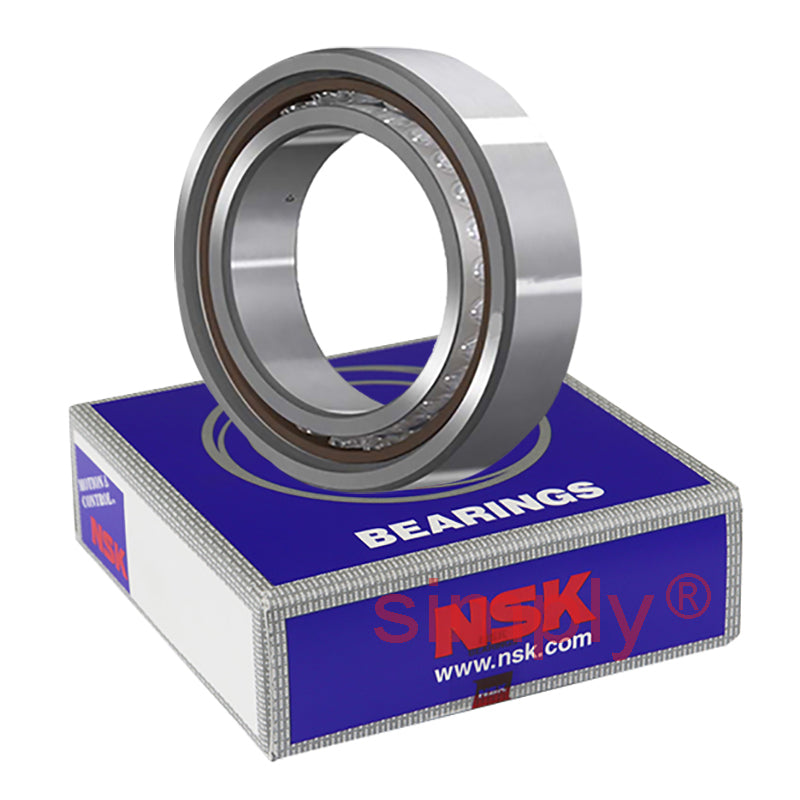

• NSK 7910CTRV1VSUMP3 Super Precision Sealed Angular Contact Spindle Bearing 50x72x12mm
1 1

SKU: 7910CTRV1VSUMP3-NSK

NSK 7910CTRV1VSUMP3 Super Precision Sealed Angular Contact Spindle Bearing 50x72x12mm

NSK 7910CTRV1VSUMP3 Super Precision Sealed Angular Contact Spindle Bearing 50x72x12mm
CHF 232.00 ex VAT
CHF 232.00 ex VAT
Sale Sold out

In stock

Price Break
3+ CHF 181.57
5+ CHF 171.37
10+ CHF 169.33
25+ CHF 167.29
49+ CHF 165.25
74+ CHF 163.21
99+ CHF 153.01
199+ CHF 150.97
249+ CHF 148.93
499+ CHF 146.89
999+ CHF 142.81

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
FOIYY32A5T
Brand / Quality:
NSK - High Quality
Inside Diameter:
50mm
Outside Diameter:
72mm
Width:
12mm
Seals / Shields:
Rubber Sealed
Style:
Single Universal Matchable Bearing
Contact Angle:
15 Degree contact angle
Bearing Preload:
Medium preload
Technical
--- Bearing dimensions
d 50mm
D 72mm
B 12mm
r<sub>min</sub> 0.6mm
r1<sub>min</sub> 0.3mm
--- Loads angles and speeds
C<sub>r</sub> 17.7Kn
C<sub>or</sub> 15kN
Axial load Kn 9.45 kN
Contact angle 15 degrees
Factor f<sub>o</sub> 16.2
Effective diameter 14.2mm
Max speed in grease 18900 rpm
Max speed in oil 28700 rpm
--- Fitting dimensions
d<sub>a min</sub> 55mm
D<sub>a max</sub> 67mm
D<sub>b max</sub> 69.5mm
r<sub>a max</sub> 0.6mm
r<sub>b max</sub> 0.3mm
Weight 0.13kg
