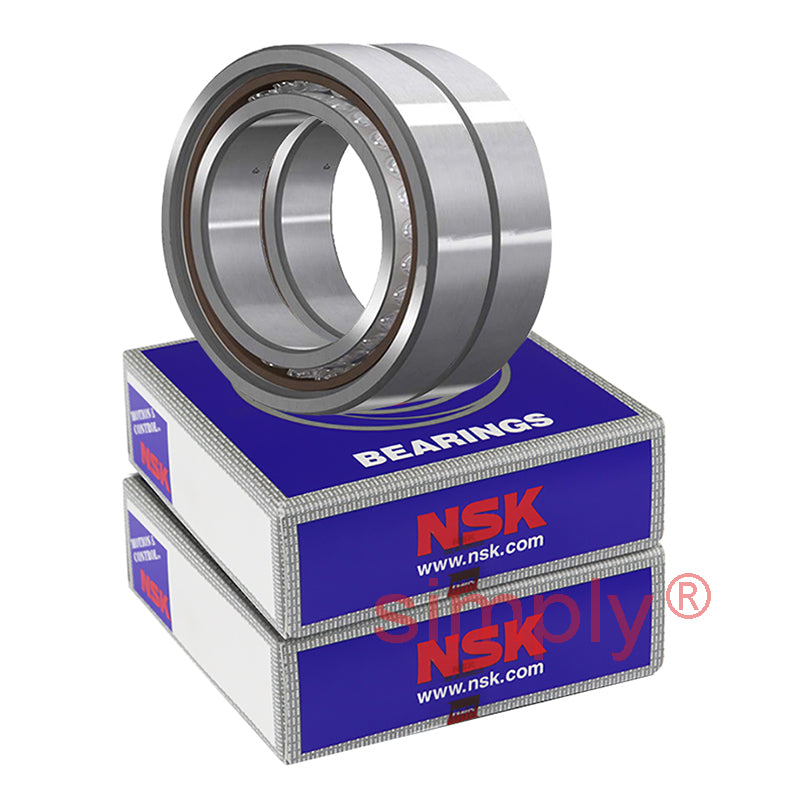

• NSK 7909A5TRDUMP3 Super Precision Angular Contact Spindle Bearing 45x68x12mm (Set of 2)
1 1

SKU: 7909A5TRDUMP3-NSK

NSK 7909A5TRDUMP3 Super Precision Angular Contact Spindle Bearing 45x68x12mm (Set of 2)

NSK 7909A5TRDUMP3 Super Precision Angular Contact Spindle Bearing 45x68x12mm (Set of 2)
CHF 334.00 ex VAT
CHF 334.00 ex VAT
Sale Sold out

In stock

Price Break
3+ CHF 266.89
5+ CHF 251.90
10+ CHF 248.90
25+ CHF 245.90
49+ CHF 242.90
74+ CHF 239.90
99+ CHF 224.91
199+ CHF 221.91
249+ CHF 218.91
499+ CHF 215.91
999+ CHF 209.92

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
5ZG1TM6ZIA
Brand / Quality:
NSK - High Quality
Inside Diameter:
45mm
Outside Diameter:
68mm
Width:
12mm
Seals / Shields:
None
Style:
Universal Matched Pair of Bearings
Contact Angle:
25 Degree contact angle
Bearing Preload:
Medium preload
Technical
--- Bearing dimensions
d 45mm
D 68mm
B 12mm
r<sub>min</sub> 0.6mm
r1<sub>min</sub> 0.3mm
--- Loads angles and speeds
C<sub>r</sub> 15.9Kn
C<sub>or</sub> 12.7kN
Axial load Kn 9.95 kN
Contact angle 25 degrees
Factor f<sub>o</sub> -
Effective diameter 19.2mm
Max speed in grease 17700 rpm
Max speed in oil 26600 rpm
--- Fitting dimensions
d<sub>a min</sub> 50mm
D<sub>a max</sub> 63mm
D<sub>b max</sub> 65.5mm
r<sub>a max</sub> 0.6mm
r<sub>b max</sub> 0.3mm
Weight 0.26kg
