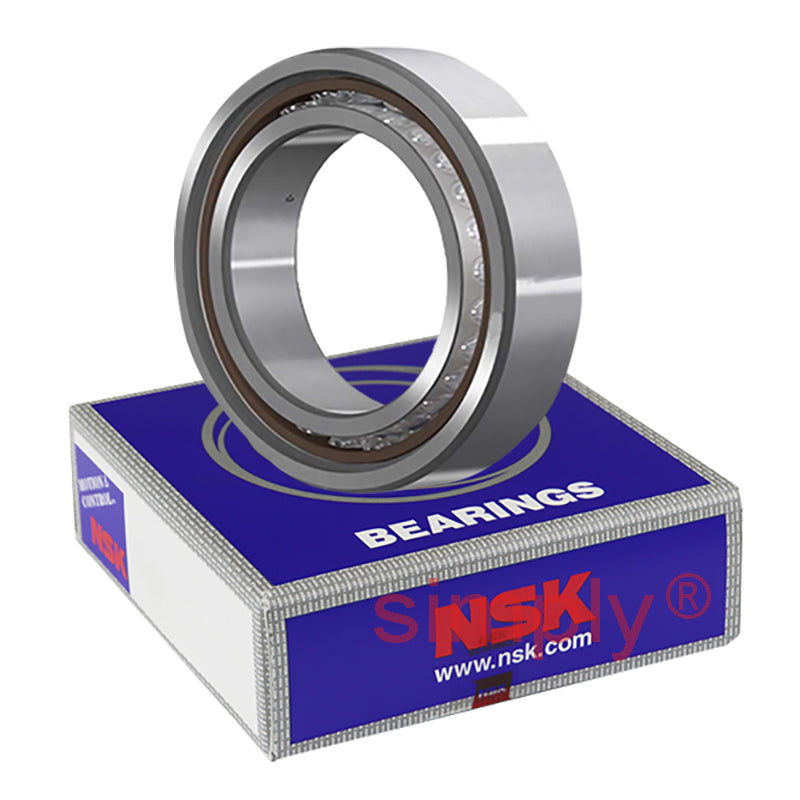

• NSK 7908A5TRV1VSUMP3 Super Precision Sealed Angular Contact Spindle Bearing 40x62x12mm
1 1

SKU: 7908A5TRV1VSUMP3-NSK

NSK 7908A5TRV1VSUMP3 Super Precision Sealed Angular Contact Spindle Bearing 40x62x12mm

NSK 7908A5TRV1VSUMP3 Super Precision Sealed Angular Contact Spindle Bearing 40x62x12mm
CHF 209.00 ex VAT
CHF 209.00 ex VAT
Sale Sold out

In stock

Price Break
3+ CHF 163.96
5+ CHF 154.75
10+ CHF 152.90
25+ CHF 151.06
49+ CHF 149.22
74+ CHF 147.38
99+ CHF 138.17
199+ CHF 136.32
249+ CHF 134.48
499+ CHF 132.64
999+ CHF 128.96

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
FOIYY32A5T
Brand / Quality:
NSK - High Quality
Inside Diameter:
40mm
Outside Diameter:
62mm
Width:
12mm
Seals / Shields:
Rubber Sealed
Style:
Single Universal Matchable Bearing
Contact Angle:
25 Degree contact angle
Bearing Preload:
Medium preload
Technical
--- Bearing dimensions
d 40mm
D 62mm
B 12mm
r<sub>min</sub> 0.6mm
r1<sub>min</sub> 0.3mm
--- Loads angles and speeds
C<sub>r</sub> 15Kn
C<sub>or</sub> 11.2kN
Axial load Kn 8.9 kN
Contact angle 25 degrees
Factor f<sub>o</sub> -
Effective diameter 17.9mm
Max speed in grease 19700 rpm
Max speed in oil 29500 rpm
--- Fitting dimensions
d<sub>a min</sub> 45mm
D<sub>a max</sub> 57mm
D<sub>b max</sub> 59.5mm
r<sub>a max</sub> 0.6mm
r<sub>b max</sub> 0.3mm
Weight 0.11kg
