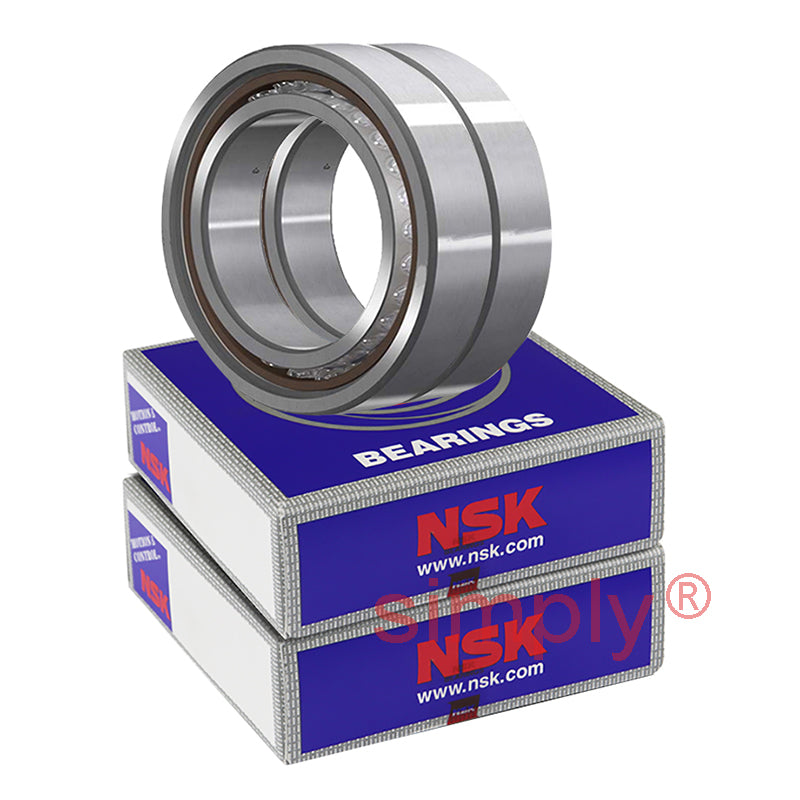

• NSK 7907CTRDULP4 Super Precision Angular Contact Spindle Bearing 35x55x10mm (Set of 2)
1 1

SKU: 7907CTRDULP4-NSK

NSK 7907CTRDULP4 Super Precision Angular Contact Spindle Bearing 35x55x10mm (Set of 2)

NSK 7907CTRDULP4 Super Precision Angular Contact Spindle Bearing 35x55x10mm (Set of 2)
CHF 265.00 ex VAT
CHF 265.00 ex VAT
Sale Sold out

In stock

Price Break
3+ CHF 211.47
5+ CHF 199.59
10+ CHF 197.21
25+ CHF 194.83
49+ CHF 192.46
74+ CHF 190.08
99+ CHF 178.20
199+ CHF 175.83
249+ CHF 173.45
499+ CHF 171.07
999+ CHF 166.32

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
5ZG1TM6ZIA
Brand / Quality:
NSK - High Quality
Inside Diameter:
35mm
Outside Diameter:
55mm
Width:
10mm
Seals / Shields:
None
Style:
Universal Matched Pair of Bearings
Contact Angle:
15 Degree contact angle
Bearing Preload:
Light preload
Technical
--- Bearing dimensions
d 35mm
D 55mm
B 10mm
r<sub>min</sub> 0.6mm
r1<sub>min</sub> 0.3mm
--- Loads angles and speeds
C<sub>r</sub> 12.7Kn
C<sub>or</sub> 9.15kN
Axial load Kn 6.6 kN
Contact angle 15 degrees
Factor f<sub>o</sub> 15.7
Effective diameter 11mm
Max speed in grease 25600 rpm
Max speed in oil 38900 rpm
--- Fitting dimensions
d<sub>a min</sub> 40mm
D<sub>a max</sub> 50mm
D<sub>b max</sub> 52.5mm
r<sub>a max</sub> 0.6mm
r<sub>b max</sub> 0.3mm
Weight 0.148kg
