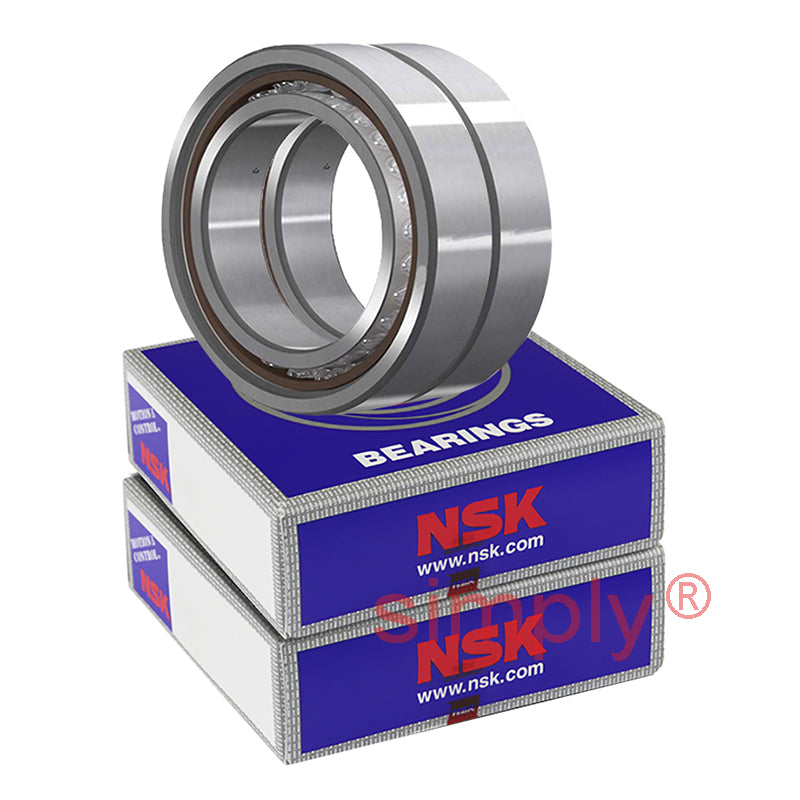

• NSK 7903A5TRDUMP3 Super Precision Angular Contact Spindle Bearing 17x30x7mm (Set of 2)
1 1

SKU: 7903A5TRDUMP3-NSK

NSK 7903A5TRDUMP3 Super Precision Angular Contact Spindle Bearing 17x30x7mm (Set of 2)

NSK 7903A5TRDUMP3 Super Precision Angular Contact Spindle Bearing 17x30x7mm (Set of 2)
CHF 223.00 ex VAT
CHF 223.00 ex VAT
Sale Sold out

In stock

Price Break
3+ CHF 178.29
5+ CHF 168.28
10+ CHF 166.27
25+ CHF 164.27
49+ CHF 162.27
74+ CHF 160.26
99+ CHF 150.25
199+ CHF 148.24
249+ CHF 146.24
499+ CHF 144.24
999+ CHF 140.23

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
5ZG1TM6ZIA
Brand / Quality:
NSK - High Quality
Inside Diameter:
17mm
Outside Diameter:
30mm
Width:
7mm
Seals / Shields:
None
Style:
Universal Matched Pair of Bearings
Contact Angle:
25 Degree contact angle
Bearing Preload:
Medium preload
Technical
--- Bearing dimensions
d 17mm
D 30mm
B 7mm
r<sub>min</sub> 0.3mm
r1<sub>min</sub> 0.15mm
--- Loads angles and speeds
C<sub>r</sub> 5Kn
C<sub>or</sub> 2.8kN
Axial load Kn 2.21 kN
Contact angle 25 degrees
Factor f<sub>o</sub> ?
Effective diameter 9mm
Max speed in grease 42600 rpm
Max speed in oil 63900 rpm
--- Fitting dimensions
d<sub>a min</sub> 19.5mm
D<sub>a max</sub> 27.5mm
D<sub>b max</sub> 28.8mm
r<sub>a max</sub> 0.3mm
r<sub>b max</sub> 0.15mm
Weight 0.034kg
