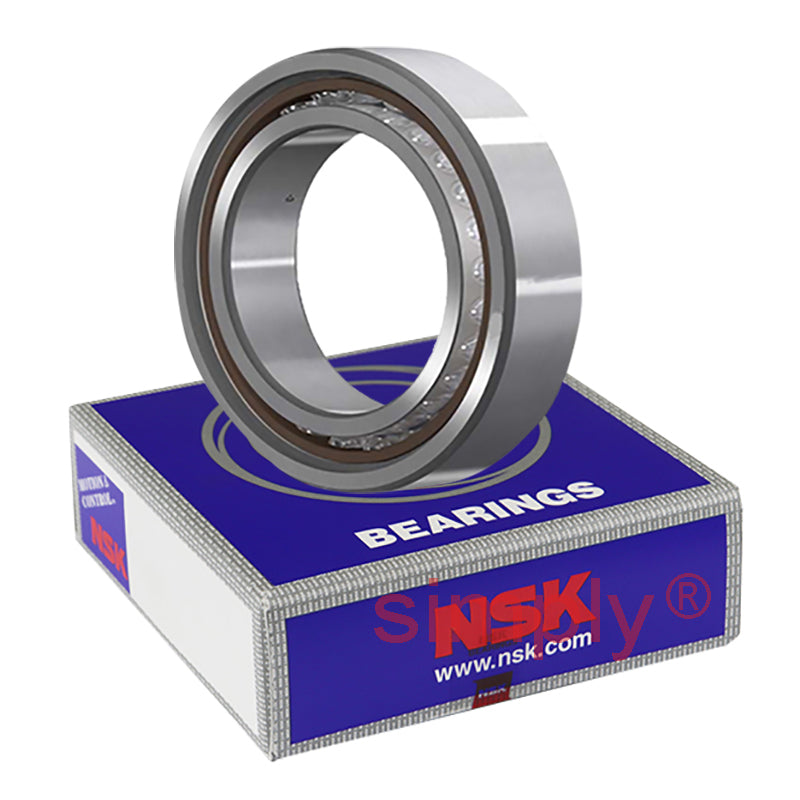

• NSK 7900A5TYNSULP4 Super Precision Angular Contact Spindle Bearing 10x22x6mm
1 1

SKU: 7900A5TYNSULP4-NSK

NSK 7900A5TYNSULP4 Super Precision Angular Contact Spindle Bearing 10x22x6mm

NSK 7900A5TYNSULP4 Super Precision Angular Contact Spindle Bearing 10x22x6mm
CHF 92.00 ex VAT
CHF 92.00 ex VAT
Sale Sold out

In stock

Price Break
3+ CHF 71.49
5+ CHF 67.47
10+ CHF 66.67
25+ CHF 65.87
49+ CHF 65.06
74+ CHF 64.26
99+ CHF 60.24
199+ CHF 59.44
249+ CHF 58.64
499+ CHF 57.83
999+ CHF 56.23

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
FOIYY32A5T
Brand / Quality:
NSK - High Quality
Inside Diameter:
10mm
Outside Diameter:
22mm
Width:
6mm
Seals / Shields:
None
Style:
Single Universal Matchable Bearing
Contact Angle:
25 Degree contact angle
Bearing Preload:
Light preload
Technical
--- Bearing dimensions
d 10mm
D 22mm
B 6mm
r<sub>min</sub> 0.3mm
r1<sub>min</sub> 0.15mm
--- Loads angles and speeds
C<sub>r</sub> 3Kn
C<sub>or</sub> 1.45kN
Axial load Kn 1.44 kN
Contact angle 25 degrees
Factor f<sub>o</sub> -
Effective diameter 6.7mm
Max speed in grease 62500 rpm
Max speed in oil 93800 rpm
--- Fitting dimensions
d<sub>a min</sub> 12.5mm
D<sub>a max</sub> 19.5mm
D<sub>b max</sub> 20.8mm
r<sub>a max</sub> 0.3mm
r<sub>b max</sub> 0.15mm
Weight 0.009kg
