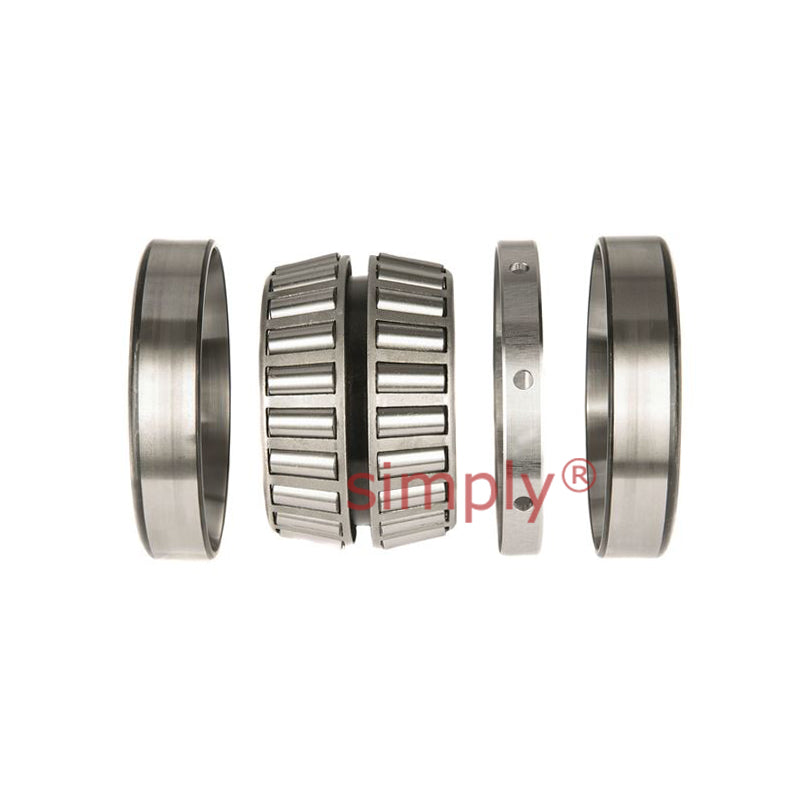

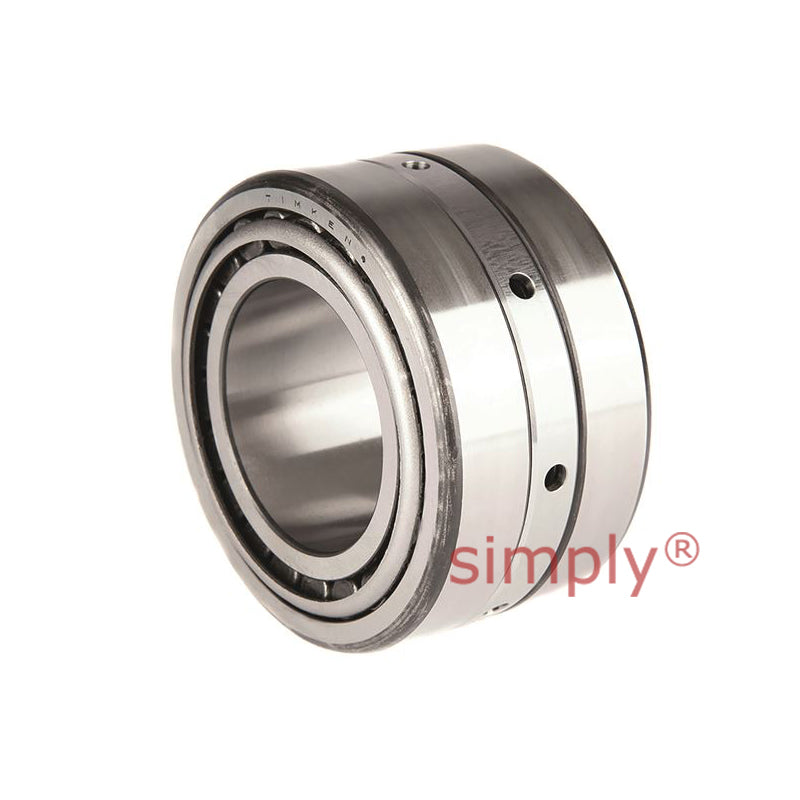

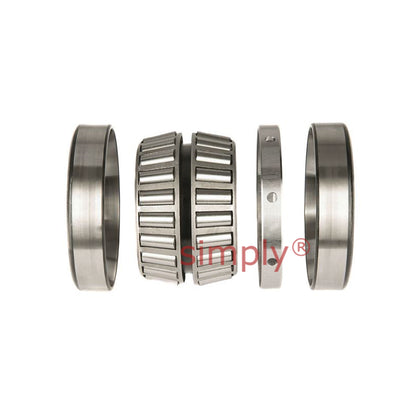

Timken 767D/753 TDI Double Inner Race Taper Roller Bearing 3.5x6.625x3.998x4.25 inch
Timken 767D/753 TDI Double Inner Race Taper Roller Bearing 3.5x6.625x3.998x4.25 inch
Out of stock
Description
Description
Timken Taper Roller Bearings: These bearings have a double tapered inner raceways between which tapered roller are arranged. The design of taper rollers makes them particularly suited to accommodating combined axial and radial loads. They are supplied as a cup and cone set (inner and outer).
Benefits: Used widely in transmissions, can be used in oil or greased, high radial and axial load
- Brand / Quality:
- Timken - High Quality
- Inside Diameter:
- 88.9mm = 3.5 (3-1/2) inch
- Outside Diameter:
- 168.28mm = 6.625 (6-5/8) inch
- Width:
- 101.55mm = 3.998 inch
Technical
Technical
| d | 88.9mm = 3.5 inch |
|---|---|
| D | 168.275mm = 6.625 inch |
| T | 101.549mm = 3.998 inch |
| C | 107.95mm = 4.25 inch |
| Dynamic (1) C1 | 528000N |
| Factors (5) e | 0.34 |
| Factors (5) Y1 | 1.98 |
| Factors (5) Y2 | 2.95 |
| Dynamic (2) C90 | 78500N |
| Dynamic (2) Ca90 | 45900N |
| Dynamic (2) C90(2) | 137000N |
| Factors (5) K | 1.71 |
| Shaft max shaft fillet radius R (3) | 1.5mm = 0.06 inch |
| Shaft backing shoulder diameter da | 101.5mm = 3.99 inch |
| Housing max shaft fillet radius r (3) | 3.3mm = 0.13 inch |
| Housing backing shoulder diameter Db | 147mm = 5.79 inch |
| G1 | 177 |
| G2 | 32.4 |
| Cg | 0.0945 |
