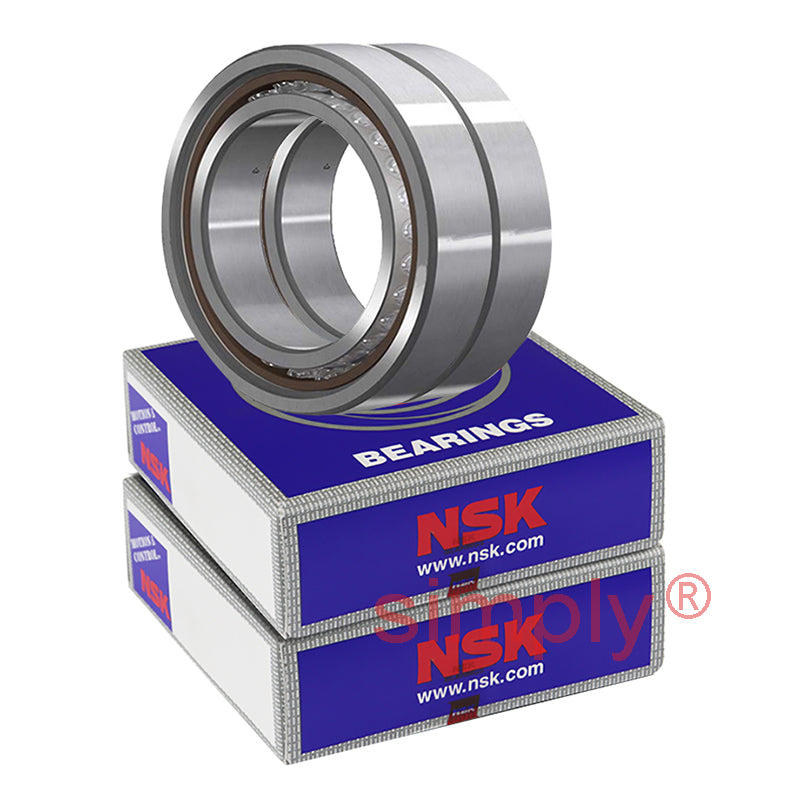

• NSK 7220A5TRDUMP3 Super Precision Angular Contact Spindle Bearing 100x180x34mm (Set of 2)
1 1

SKU: 7220A5TRDUMP3-NSK

NSK 7220A5TRDUMP3 Super Precision Angular Contact Spindle Bearing 100x180x34mm (Set of 2)

NSK 7220A5TRDUMP3 Super Precision Angular Contact Spindle Bearing 100x180x34mm (Set of 2)
CHF 1,471.00 ex VAT
CHF 1,471.00 ex VAT
Sale Sold out

In stock

Price Break
3+ CHF 1,177.00
5+ CHF 1,110.88
10+ CHF 1,097.65
25+ CHF 1,084.43
49+ CHF 1,071.20
74+ CHF 1,057.98
99+ CHF 991.85
199+ CHF 978.63
249+ CHF 965.40
499+ CHF 952.18
999+ CHF 925.73

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
5ZG1TM6ZIA
Brand / Quality:
NSK - High Quality
Inside Diameter:
100mm
Outside Diameter:
180mm
Width:
34mm
Seals / Shields:
None
Style:
Universal Matched Pair of Bearings
Contact Angle:
25 Degree contact angle
Bearing Preload:
Medium preload
Technical
--- Bearing dimensions
d 100mm
D 180mm
B 34mm
r<sub>min</sub> 2.1mm
r1<sub>min</sub> 1.1mm
--- Loads angles and speeds
C<sub>r</sub> 149Kn
C<sub>or</sub> 121kN
Axial load Kn 103 kN
Contact angle 25 degrees
Factor f<sub>o</sub> -
Effective diameter 49.6mm
Max speed in grease 7200 rpm
Max speed in oil 10800 rpm
--- Fitting dimensions
d<sub>a min</sub> 112mm
D<sub>a max</sub> 168mm
D<sub>b max</sub> 173mm
r<sub>a max</sub> 2mm
r<sub>b max</sub> 1mm
Weight 6.32kg
