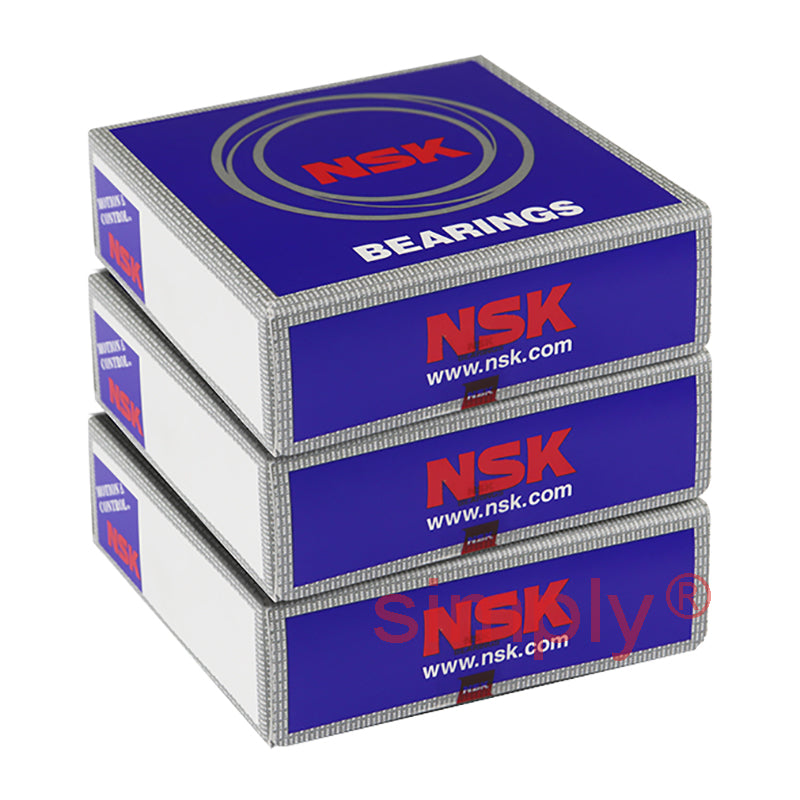

• NSK 7219A5TRDUDLP3 Super Precision Angular Contact Spindle Bearing 95x170x32mm (Set of 3)
1 1

SKU: 7219A5TRDUDLP3-NSK

NSK 7219A5TRDUDLP3 Super Precision Angular Contact Spindle Bearing 95x170x32mm (Set of 3)

NSK 7219A5TRDUDLP3 Super Precision Angular Contact Spindle Bearing 95x170x32mm (Set of 3)
CHF 1,956.00 ex VAT
CHF 1,956.00 ex VAT
Sale Sold out

In stock

Price Break
3+ CHF 1,534.64
5+ CHF 1,448.42
10+ CHF 1,431.18
25+ CHF 1,413.93
49+ CHF 1,396.69
74+ CHF 1,379.45
99+ CHF 1,293.23
199+ CHF 1,275.99
249+ CHF 1,258.75
499+ CHF 1,241.50
999+ CHF 1,207.02

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
BDM8P7Y56R
Brand / Quality:
NSK - High Quality
Inside Diameter:
95mm
Outside Diameter:
170mm
Width:
32mm
Seals / Shields:
None
Style:
Universal Matched Triple Bearing Set
Contact Angle:
25 Degree contact angle
Bearing Preload:
Light preload
Technical
--- Bearing dimensions
d 95mm
D 170mm
B 32mm
r<sub>min</sub> 2.1mm
r1<sub>min</sub> mm
--- Loads angles and speeds
C<sub>r</sub> 133Kn
C<sub>or</sub> 107kN
Axial load Kn 87 kN
Contact angle 25 degrees
Factor f<sub>o</sub> -
Effective diameter 46.9mm
Max speed in grease 7600 rpm
Max speed in oil 11400 rpm
--- Fitting dimensions
d<sub>a min</sub> 107mm
D<sub>a max</sub> 158mm
D<sub>b max</sub> 163mm
r<sub>a max</sub> 2mm
r<sub>b max</sub> 1mm
Weight 7.89kg
