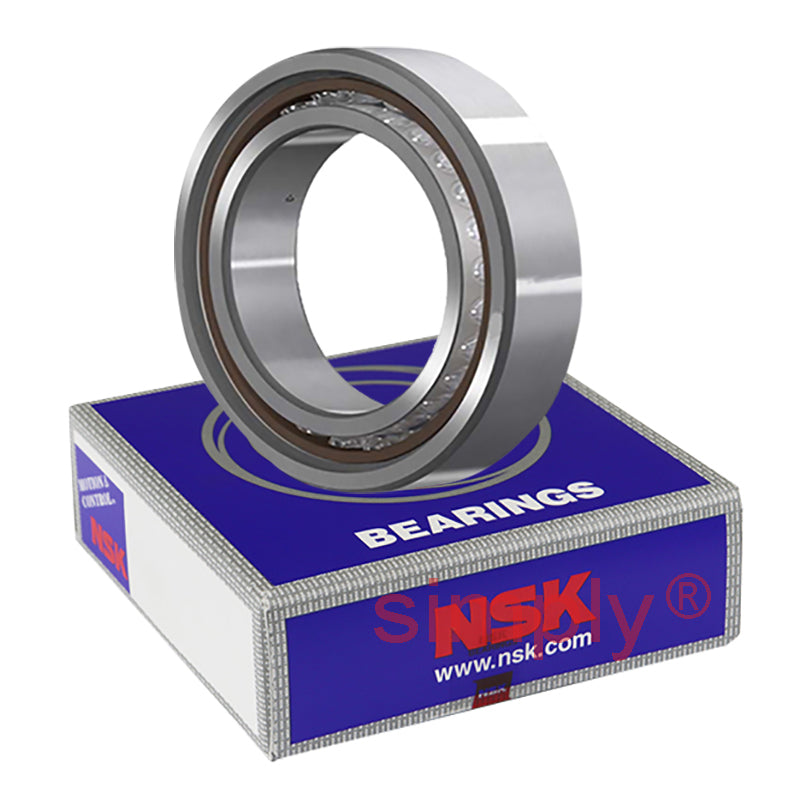

• NSK 7218A5TRSUMP4 Super Precision Angular Contact Spindle Bearing 90x160x30mm
1 1

SKU: 7218A5TRSUMP4-NSK

NSK 7218A5TRSUMP4 Super Precision Angular Contact Spindle Bearing 90x160x30mm

NSK 7218A5TRSUMP4 Super Precision Angular Contact Spindle Bearing 90x160x30mm
CHF 564.00 ex VAT
CHF 564.00 ex VAT
Sale Sold out

In stock

Price Break
3+ CHF 442.21
5+ CHF 417.36
10+ CHF 412.39
25+ CHF 407.43
49+ CHF 402.46
74+ CHF 397.49
99+ CHF 372.65
199+ CHF 367.68
249+ CHF 362.71
499+ CHF 357.74
999+ CHF 347.80

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
FOIYY32A5T
Brand / Quality:
NSK - High Quality
Inside Diameter:
90mm
Outside Diameter:
160mm
Width:
30mm
Seals / Shields:
None
Style:
Single Universal Matchable Bearing
Contact Angle:
25 Degree contact angle
Bearing Preload:
Medium preload
Technical
--- Bearing dimensions
d 90mm
D 160mm
B 30mm
r<sub>min</sub> 2mm
r1<sub>min</sub> 1mm
--- Loads angles and speeds
C<sub>r</sub> 123Kn
C<sub>or</sub> 100kN
Axial load Kn 83.5 kN
Contact angle 25 degrees
Factor f<sub>o</sub> -
Effective diameter 44.1mm
Max speed in grease 8000 rpm
Max speed in oil 12000 rpm
--- Fitting dimensions
d<sub>a min</sub> 100mm
D<sub>a max</sub> 150mm
D<sub>b max</sub> 154mm
r<sub>a max</sub> 2mm
r<sub>b max</sub> 1mm
Weight 2.31kg
