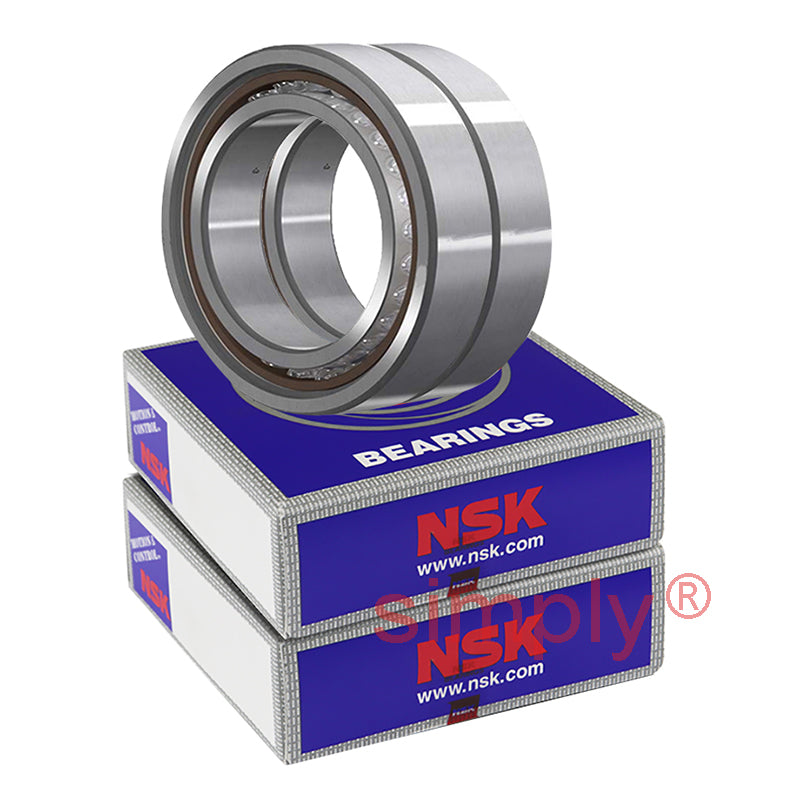

• NSK 7217A5TRDUMP3 Super Precision Angular Contact Spindle Bearing 85x150x28mm (Set of 2)
1 1

SKU: 7217A5TRDUMP3-NSK

NSK 7217A5TRDUMP3 Super Precision Angular Contact Spindle Bearing 85x150x28mm (Set of 2)

NSK 7217A5TRDUMP3 Super Precision Angular Contact Spindle Bearing 85x150x28mm (Set of 2)
CHF 998.00 ex VAT
CHF 998.00 ex VAT
Sale Sold out

In stock

Price Break
3+ CHF 798.01
5+ CHF 753.18
10+ CHF 744.21
25+ CHF 735.25
49+ CHF 726.28
74+ CHF 717.31
99+ CHF 672.48
199+ CHF 663.51
249+ CHF 654.55
499+ CHF 645.58
999+ CHF 627.65

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
5ZG1TM6ZIA
Brand / Quality:
NSK - High Quality
Inside Diameter:
85mm
Outside Diameter:
150mm
Width:
28mm
Seals / Shields:
None
Style:
Universal Matched Pair of Bearings
Contact Angle:
25 Degree contact angle
Bearing Preload:
Medium preload
Technical
--- Bearing dimensions
d 85mm
D 150mm
B 28mm
r<sub>min</sub> 2mm
r1<sub>min</sub> 1mm
--- Loads angles and speeds
C<sub>r</sub> 107Kn
C<sub>or</sub> 86.5kN
Axial load Kn 70 kN
Contact angle 25 degrees
Factor f<sub>o</sub> -
Effective diameter 41.4mm
Max speed in grease 8600 rpm
Max speed in oil 12800 rpm
--- Fitting dimensions
d<sub>a min</sub> 95mm
D<sub>a max</sub> 140mm
D<sub>b max</sub> 144mm
r<sub>a max</sub> 2mm
r<sub>b max</sub> 1mm
Weight 3.58kg
