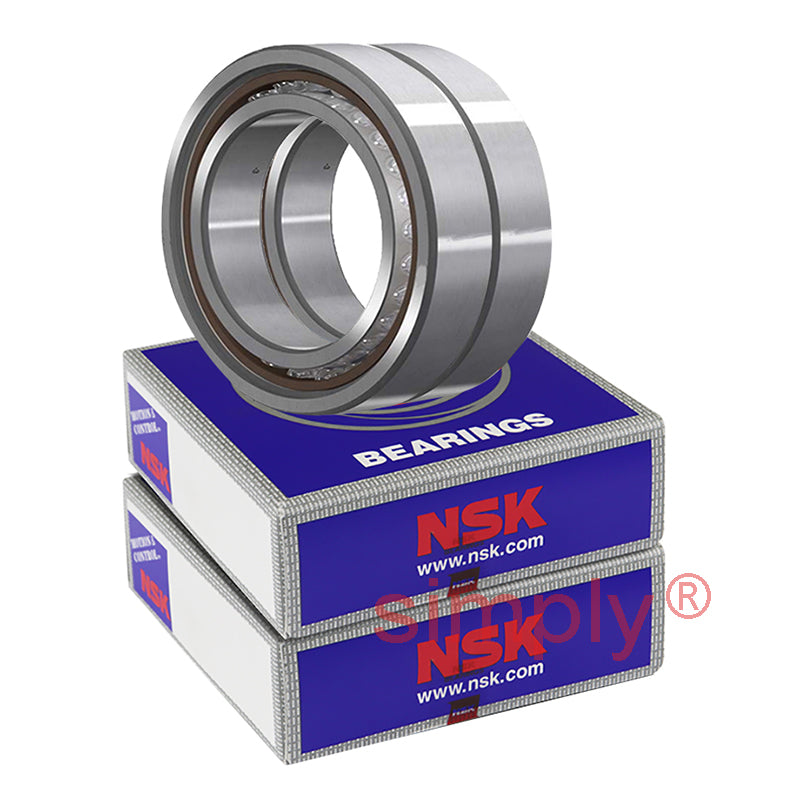

• NSK 7215A5TRDULP3 Super Precision Angular Contact Spindle Bearing 75x130x25mm (Set of 2)
1 1

SKU: 7215A5TRDULP3-NSK

NSK 7215A5TRDULP3 Super Precision Angular Contact Spindle Bearing 75x130x25mm (Set of 2)

NSK 7215A5TRDULP3 Super Precision Angular Contact Spindle Bearing 75x130x25mm (Set of 2)
CHF 786.00 ex VAT
CHF 786.00 ex VAT
Sale Sold out

In stock

Price Break
3+ CHF 628.53
5+ CHF 593.22
10+ CHF 586.16
25+ CHF 579.10
49+ CHF 572.04
74+ CHF 564.97
99+ CHF 529.66
199+ CHF 522.60
249+ CHF 515.54
499+ CHF 508.48
999+ CHF 494.35

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
5ZG1TM6ZIA
Brand / Quality:
NSK - High Quality
Inside Diameter:
75mm
Outside Diameter:
130mm
Width:
25mm
Seals / Shields:
None
Style:
Universal Matched Pair of Bearings
Contact Angle:
25 Degree contact angle
Bearing Preload:
Light preload
Technical
--- Bearing dimensions
d 75mm
D 130mm
B 25mm
r<sub>min</sub> 1.5mm
r1<sub>min</sub> 1mm
--- Loads angles and speeds
C<sub>r</sub> 82.5Kn
C<sub>or</sub> 66.5kN
Axial load Kn 53 kN
Contact angle 25 degrees
Factor f<sub>o</sub> -
Effective diameter 36.4mm
Max speed in grease 9800 rpm
Max speed in oil 14700 rpm
--- Fitting dimensions
d<sub>a min</sub> 84mm
D<sub>a max</sub> 121mm
D<sub>b max</sub> 124mm
r<sub>a max</sub> 1.5mm
r<sub>b max</sub> 0.8mm
Weight 2.36kg
