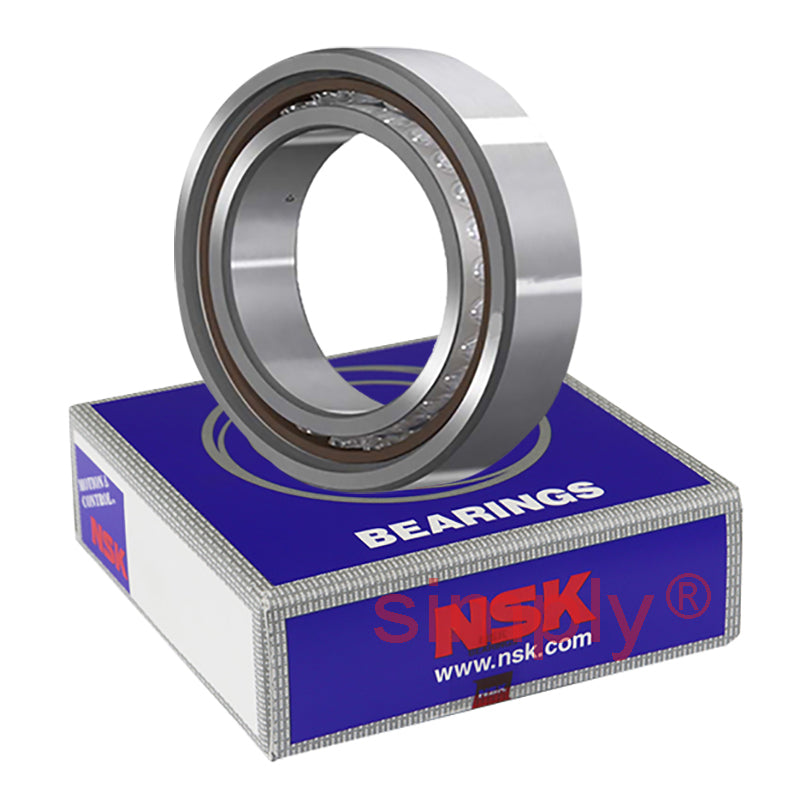

• NSK 7213A5TRSULP3 Super Precision Angular Contact Spindle Bearing 65x120x23mm
1 1

SKU: 7213A5TRSULP3-NSK

NSK 7213A5TRSULP3 Super Precision Angular Contact Spindle Bearing 65x120x23mm

NSK 7213A5TRSULP3 Super Precision Angular Contact Spindle Bearing 65x120x23mm
CHF 342.00 ex VAT
CHF 342.00 ex VAT
Sale Sold out

In stock

Price Break
3+ CHF 268.30
5+ CHF 253.22
10+ CHF 250.21
25+ CHF 247.19
49+ CHF 244.18
74+ CHF 241.16
99+ CHF 226.09
199+ CHF 223.08
249+ CHF 220.06
499+ CHF 217.05
999+ CHF 211.02

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
FOIYY32A5T
Brand / Quality:
NSK - High Quality
Inside Diameter:
65mm
Outside Diameter:
120mm
Width:
23mm
Seals / Shields:
None
Style:
Single Universal Matchable Bearing
Contact Angle:
25 Degree contact angle
Bearing Preload:
Light preload
Technical
--- Bearing dimensions
d 65mm
D 120mm
B 23mm
r<sub>min</sub> 1.5mm
r1<sub>min</sub> 1mm
--- Loads angles and speeds
C<sub>r</sub> 73Kn
C<sub>or</sub> 56kN
Axial load Kn 46.5 kN
Contact angle 25 degrees
Factor f<sub>o</sub> -
Effective diameter 33.1mm
Max speed in grease 10900 rpm
Max speed in oil 16300 rpm
--- Fitting dimensions
d<sub>a min</sub> 74mm
D<sub>a max</sub> 111mm
D<sub>b max</sub> 114mm
r<sub>a max</sub> 1.5mm
r<sub>b max</sub> 0.8mm
Weight 1kg
