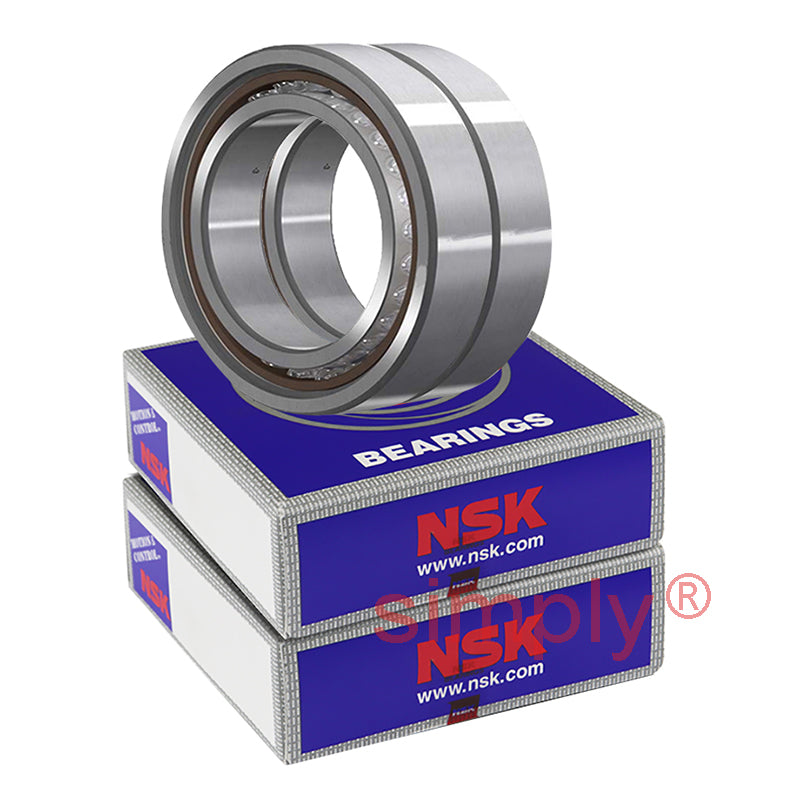

• NSK 7212CTRDULP3 Super Precision Angular Contact Spindle Bearing 60x110x22mm (Set of 2)
1 1

SKU: 7212CTRDULP3-NSK

NSK 7212CTRDULP3 Super Precision Angular Contact Spindle Bearing 60x110x22mm (Set of 2)

NSK 7212CTRDULP3 Super Precision Angular Contact Spindle Bearing 60x110x22mm (Set of 2)
CHF 582.00 ex VAT
CHF 582.00 ex VAT
Sale Sold out

In stock

Price Break
3+ CHF 465.73
5+ CHF 439.56
10+ CHF 434.33
25+ CHF 429.10
49+ CHF 423.87
74+ CHF 418.63
99+ CHF 392.47
199+ CHF 387.24
249+ CHF 382.00
499+ CHF 376.77
999+ CHF 366.30

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
5ZG1TM6ZIA
Brand / Quality:
NSK - High Quality
Inside Diameter:
60mm
Outside Diameter:
110mm
Width:
22mm
Seals / Shields:
None
Style:
Universal Matched Pair of Bearings
Contact Angle:
15 Degree contact angle
Bearing Preload:
Light preload
Technical
--- Bearing dimensions
d 60mm
D 110mm
B 22mm
r<sub>min</sub> 1.5mm
r1<sub>min</sub> 1mm
--- Loads angles and speeds
C<sub>r</sub> 67.5Kn
C<sub>or</sub> 49kN
Axial load Kn 34 kN
Contact angle 15 degrees
Factor f<sub>o</sub> 14.4
Effective diameter 22.4mm
Max speed in grease 13600 rpm
Max speed in oil 20600 rpm
--- Fitting dimensions
d<sub>a min</sub> 69mm
D<sub>a max</sub> 101mm
D<sub>b max</sub> 104mm
r<sub>a max</sub> 1.5mm
r<sub>b max</sub> 0.8mm
Weight 1.56kg
