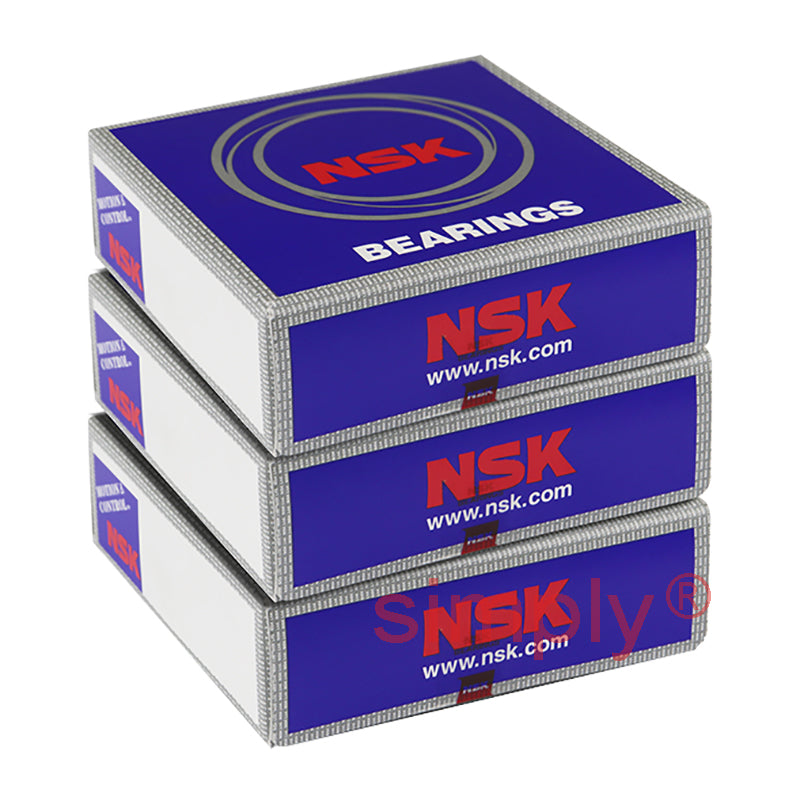

• NSK 7212CTRDUDLP3 Super Precision Angular Contact Spindle Bearing 60x110x22mm (Set of 3)
1 1

SKU: 7212CTRDUDLP3-NSK

NSK 7212CTRDUDLP3 Super Precision Angular Contact Spindle Bearing 60x110x22mm (Set of 3)

NSK 7212CTRDUDLP3 Super Precision Angular Contact Spindle Bearing 60x110x22mm (Set of 3)
CHF 873.00 ex VAT
CHF 873.00 ex VAT
Sale Sold out

In stock

Price Break
3+ CHF 684.24
5+ CHF 645.80
10+ CHF 638.11
25+ CHF 630.42
49+ CHF 622.74
74+ CHF 615.05
99+ CHF 576.61
199+ CHF 568.92
249+ CHF 561.23
499+ CHF 553.54
999+ CHF 538.17

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
BDM8P7Y56R
Brand / Quality:
NSK - High Quality
Inside Diameter:
60mm
Outside Diameter:
110mm
Width:
22mm
Seals / Shields:
None
Style:
Universal Matched Triple Bearing Set
Contact Angle:
15 Degree contact angle
Bearing Preload:
Light preload
Technical
--- Bearing dimensions
d 60mm
D 110mm
B 22mm
r<sub>min</sub> 1.5mm
r1<sub>min</sub> 1mm
--- Loads angles and speeds
C<sub>r</sub> 67.5Kn
C<sub>or</sub> 49kN
Axial load Kn 34 kN
Contact angle 15 degrees
Factor f<sub>o</sub> 14.4
Effective diameter 22.4mm
Max speed in grease 13600 rpm
Max speed in oil 20600 rpm
--- Fitting dimensions
d<sub>a min</sub> 69mm
D<sub>a max</sub> 101mm
D<sub>b max</sub> 104mm
r<sub>a max</sub> 1.5mm
r<sub>b max</sub> 0.8mm
Weight 2.34kg
