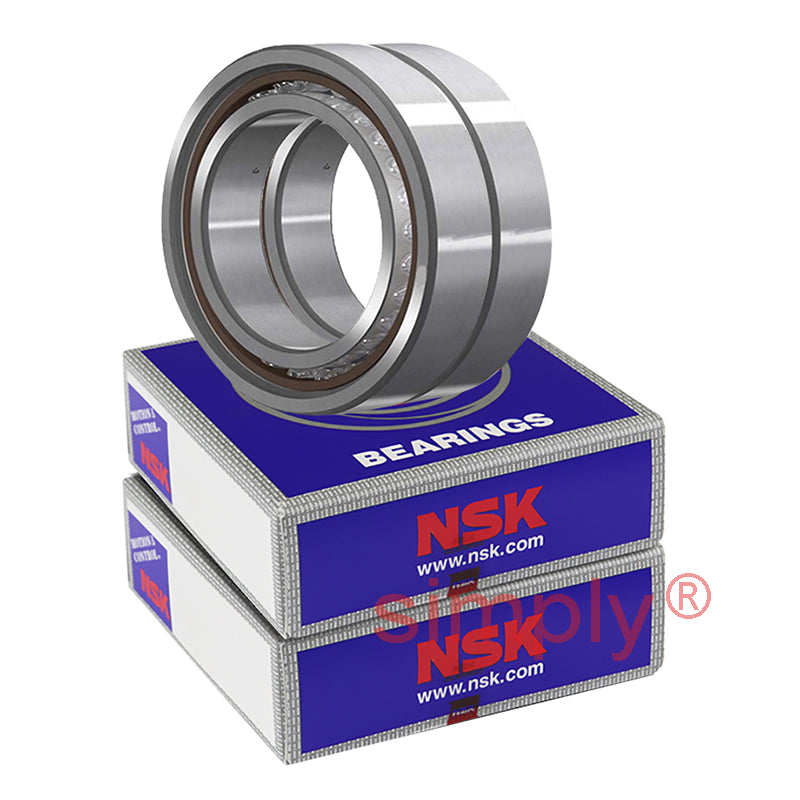

• NSK 7206CTYNDBLP4 Super Precision Angular Contact Spindle Bearing 30x62x16mm (Set of 2)
1 1

SKU: 7206CTYNDBLP4-NSK

NSK 7206CTYNDBLP4 Super Precision Angular Contact Spindle Bearing 30x62x16mm (Set of 2)

NSK 7206CTYNDBLP4 Super Precision Angular Contact Spindle Bearing 30x62x16mm (Set of 2)
CHF 279.00 ex VAT
CHF 279.00 ex VAT
Sale Sold out

In stock

Price Break
3+ CHF 222.52
5+ CHF 210.02
10+ CHF 207.52
25+ CHF 205.02
49+ CHF 202.52
74+ CHF 200.02
99+ CHF 187.52
199+ CHF 185.02
249+ CHF 182.52
499+ CHF 180.02
999+ CHF 175.02

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
5ZG1TM6ZIA
Brand / Quality:
NSK - High Quality
Inside Diameter:
30mm
Outside Diameter:
62mm
Width:
16mm
Seals / Shields:
None
Style:
Universal Matched Pair of Bearings
Contact Angle:
15 Degree contact angle
Bearing Preload:
Light preload
Technical
--- Bearing dimensions
d 30mm
D 62mm
B 16mm
r<sub>min</sub> 1mm
r1<sub>min</sub> 0.6mm
--- Loads angles and speeds
C<sub>r</sub> 24.2Kn
C<sub>or</sub> 14.7kN
Axial load Kn 10.3 kN
Contact angle 15 degrees
Factor f<sub>o</sub> 13.9
Effective diameter 14.2mm
Max speed in grease 25000 rpm
Max speed in oil 38100 rpm
--- Fitting dimensions
d<sub>a min</sub> 36mm
D<sub>a max</sub> 56mm
D<sub>b max</sub> 57mm
r<sub>a max</sub> 1mm
r<sub>b max</sub> 0.5mm
Weight 0.388kg
