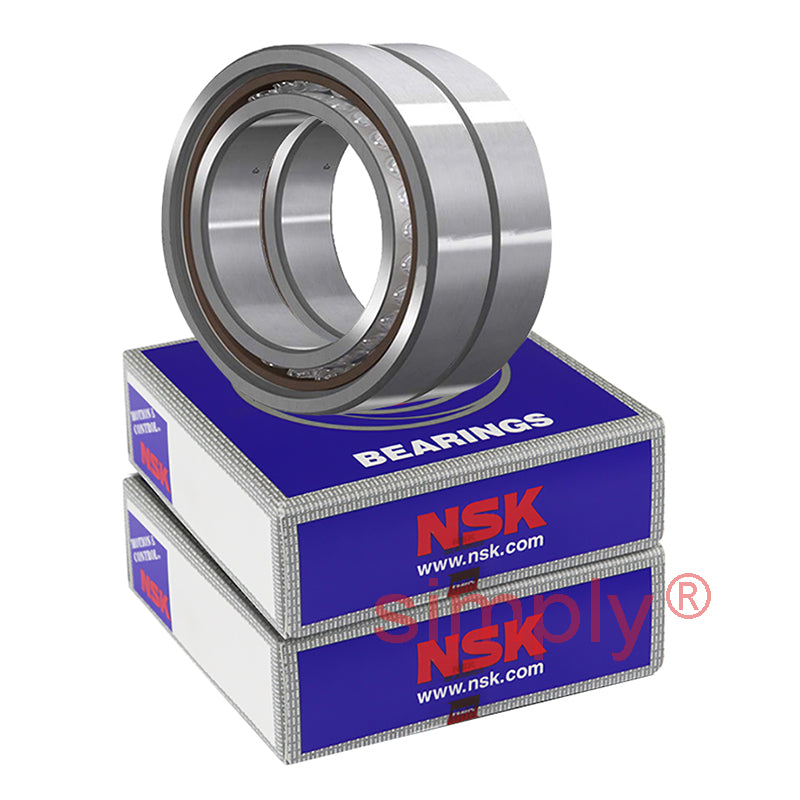

• NSK 7205CTRDUHP4Y Super Precision Angular Contact Spindle Bearing 25x52x15mm (Set of 2)
1 1

SKU: 7205CTRDUHP4Y-NSK

NSK 7205CTRDUHP4Y Super Precision Angular Contact Spindle Bearing 25x52x15mm (Set of 2)

NSK 7205CTRDUHP4Y Super Precision Angular Contact Spindle Bearing 25x52x15mm (Set of 2)
CHF 279.00 ex VAT
CHF 279.00 ex VAT
Sale Sold out

In stock

Price Break
3+ CHF 222.52
5+ CHF 210.02
10+ CHF 207.52
25+ CHF 205.02
49+ CHF 202.52
74+ CHF 200.02
99+ CHF 187.52
199+ CHF 185.02
249+ CHF 182.52
499+ CHF 180.02
999+ CHF 175.02

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
5ZG1TM6ZIA
Brand / Quality:
NSK - High Quality
Inside Diameter:
25mm
Outside Diameter:
52mm
Width:
15mm
Seals / Shields:
None
Style:
Universal Matched Pair of Bearings
Contact Angle:
15 Degree contact angle
Bearing Preload:
Heavy preload
Technical
--- Bearing dimensions
d 25mm
D 52mm
B 15mm
r<sub>min</sub> 1mm
r1<sub>min</sub> 0.6mm
--- Loads angles and speeds
C<sub>r</sub> 16.7Kn
C<sub>or</sub> 9.8kN
Axial load Kn 9.05 kN
Contact angle 25 degrees
Factor f<sub>o</sub> -
Effective diameter 16.5mm
Max speed in grease 26000 rpm
Max speed in oil 39000 rpm
--- Fitting dimensions
d<sub>a min</sub> 31mm
D<sub>a max</sub> 46mm
D<sub>b max</sub> 47mm
r<sub>a max</sub> 1mm
r<sub>b max</sub> 0.5mm
Weight 0.26kg
