SKU: 719USSC110-UKF

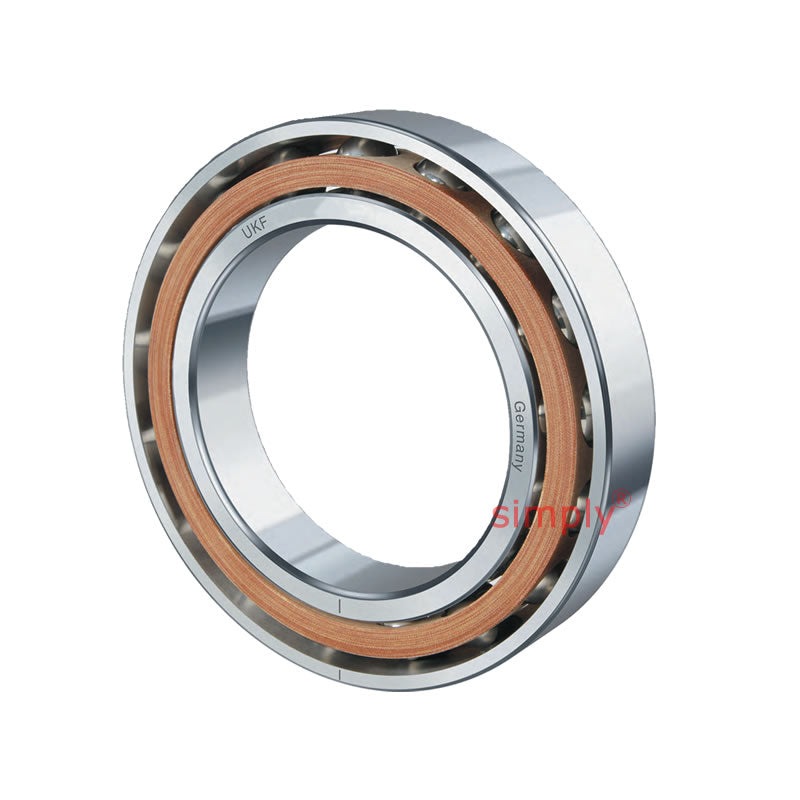

UKF 719USSC110 Super Precision Single Row Angular Contact Spindle Bearing 110x150x20mm
UKF 719USSC110 Super Precision Single Row Angular Contact Spindle Bearing 110x150x20mm
Equivalent to: 719USSC110
Out of stock
Share this product
Description
Description
- Brand / Quality:
- UKF - High Quality
- Inside Diameter:
- 110mm
- Outside Diameter:
- 150mm
- Width:
- 20mm
- Seals / Shields:
- None
- Style:
- Single Row Angular Contact Spindle Bearing
- Contact Angle:
- 21 Degree contact angle
Technical
Technical
| d | 110mm |
|---|---|
| D | 150mm |
| B | 20mm |
| Dynamic load Co | 34100 N |
| Static load C | 38500 N |
| Speed in Grease | 9800 rpm |
| Speed in Oil | 15400 rpm |
| r<sub>a</sub> | 0.6mm |
| d<sub>a</sub> | 117mm |
| D<sub>a</sub> | 143mm |
| Axial Preload F<sub>v</sub> L | 470 N |
| Axial Preload F<sub>v</sub> M | 1420 N |
| Axial Preload F<sub>v</sub> S | 2840 N |
| Axial Rigidity R<sub>a</sub> L | 207 N/μm |
| Axial Rigidity R<sub>a</sub> M | 299 N/μm |
| Axial Rigidity R<sub>a</sub> S | 380 N/μm |
| Radial Rigidity R<sub>r</sub> L | 840 N/μm |
| Radial Rigidity R <sub>r</sub> M | 1208 N/μm |
| Radial Rigidity <sub>r</sub> S | 1530 N/μm |
| Weight | 0.72 kg |
