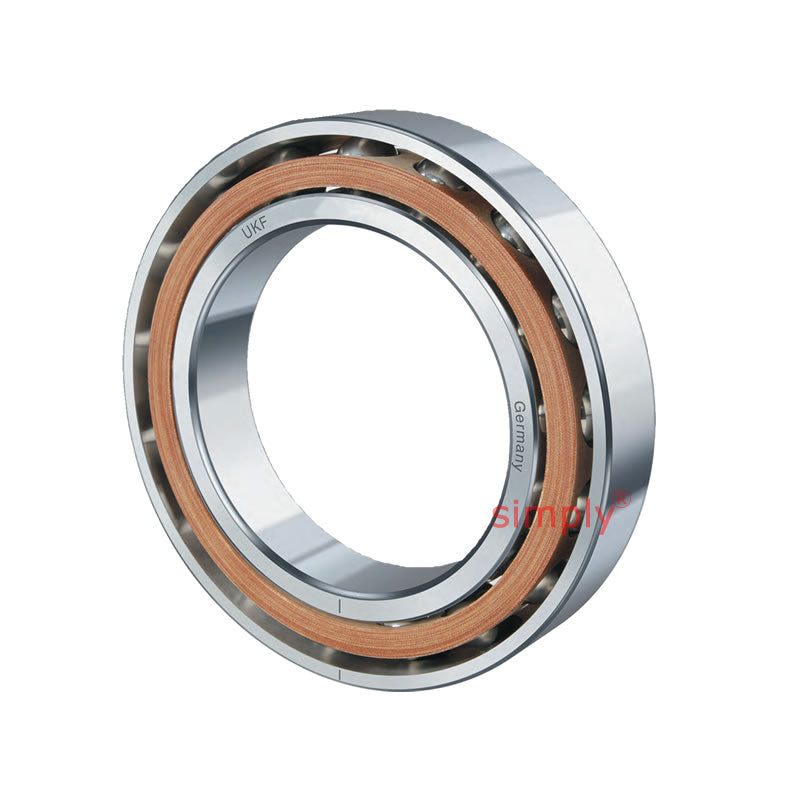

UKF 70USSC55 Super Precision Single Row Angular Contact Spindle Bearing 55x90x18mm
UKF 70USSC55 Super Precision Single Row Angular Contact Spindle Bearing 55x90x18mm
Equivalent to: 70USSC55
Out of stock
Share this product
Description
Description
- Brand / Quality:
- UKF - High Quality
- Inside Diameter:
- 55mm
- Outside Diameter:
- 90mm
- Width:
- 18mm
- Seals / Shields:
- None
- Style:
- Single Row Angular Contact Spindle Bearing
- Contact Angle:
- 21 Degree contact angle
Technical
Technical
| d | 55mm |
|---|---|
| D | 90mm |
| B | 18mm |
| Dynamic load Co | 13310 N |
| Static load C | 19950 N |
| Speed in Grease | 17500 rpm |
| Speed in Oil | 28000 rpm |
| r<sub>a</sub> | 1mm |
| d<sub>a</sub> | 62mm |
| D<sub>a</sub> | 83mm |
| Axial Preload F<sub>v</sub> L | 240 N |
| Axial Preload F<sub>v</sub> M | 720 N |
| Axial Preload F<sub>v</sub> S | 1420 N |
| Axial Rigidity R<sub>a</sub> L | 121 N/μm |
| Axial Rigidity R<sub>a</sub> M | 173 N/μm |
| Axial Rigidity R<sub>a</sub> S | 213 N/μm |
| Radial Rigidity R<sub>r</sub> L | 477 N/μm |
| Radial Rigidity R <sub>r</sub> M | 690 N/μm |
| Radial Rigidity <sub>r</sub> S | 863 N/μm |
| Weight | 0.33 kg |
