SKU: 70USSC40-UKF

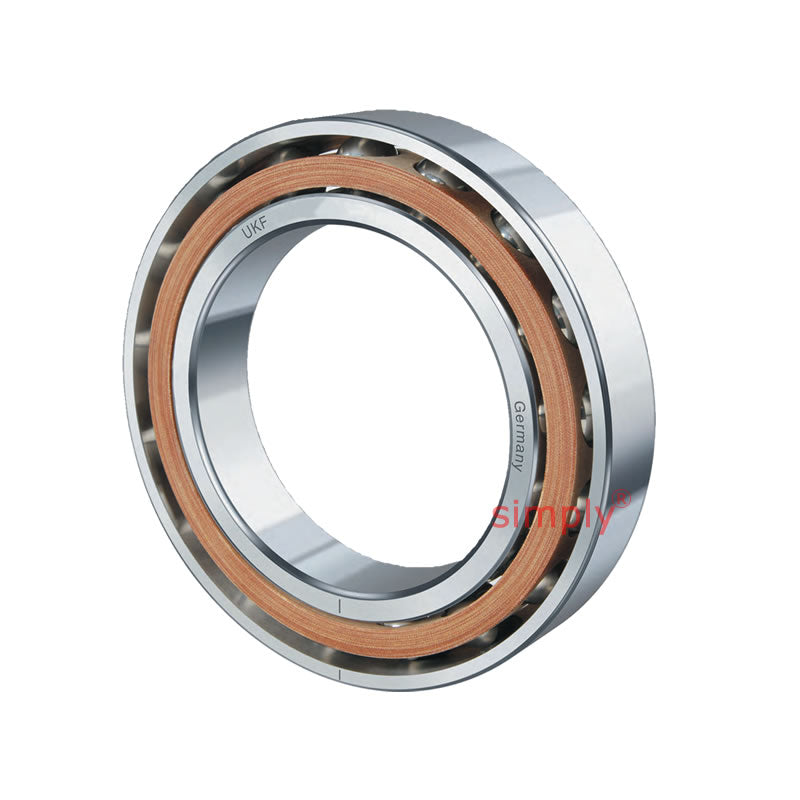

UKF 70USSC40 Super Precision Single Row Angular Contact Spindle Bearing 40x68x15mm
UKF 70USSC40 Super Precision Single Row Angular Contact Spindle Bearing 40x68x15mm
Equivalent to: 70USSC40
Out of stock
Share this product
Description
Description
- Brand / Quality:
- UKF - High Quality
- Inside Diameter:
- 40mm
- Outside Diameter:
- 68mm
- Width:
- 15mm
- Seals / Shields:
- None
- Style:
- Single Row Angular Contact Spindle Bearing
- Contact Angle:
- 21 Degree contact angle
Technical
Technical
| d | 40mm |
|---|---|
| D | 68mm |
| B | 15mm |
| Dynamic load Co | 7535 N |
| Static load C | 12950 N |
| Speed in Grease | 23800 rpm |
| Speed in Oil | 36400 rpm |
| r<sub>a</sub> | 1mm |
| d<sub>a</sub> | 47mm |
| D<sub>a</sub> | 61mm |
| Axial Preload F<sub>v</sub> L | 130 N |
| Axial Preload F<sub>v</sub> M | 370 N |
| Axial Preload F<sub>v</sub> S | 750 N |
| Axial Rigidity R<sub>a</sub> L | 84 N/μm |
| Axial Rigidity R<sub>a</sub> M | 121 N/μm |
| Axial Rigidity R<sub>a</sub> S | 150 N/μm |
| Radial Rigidity R<sub>r</sub> L | 339 N/μm |
| Radial Rigidity R <sub>r</sub> M | 483 N/μm |
| Radial Rigidity <sub>r</sub> S | 610 N/μm |
| Weight | 0.16 kg |
