• UKF 70USS90A210IM Super Precision Angular Contact Spindle Bearing 90x140x24mm
1 1

SKU: 70USS90 .A21.0/I.M-UKF

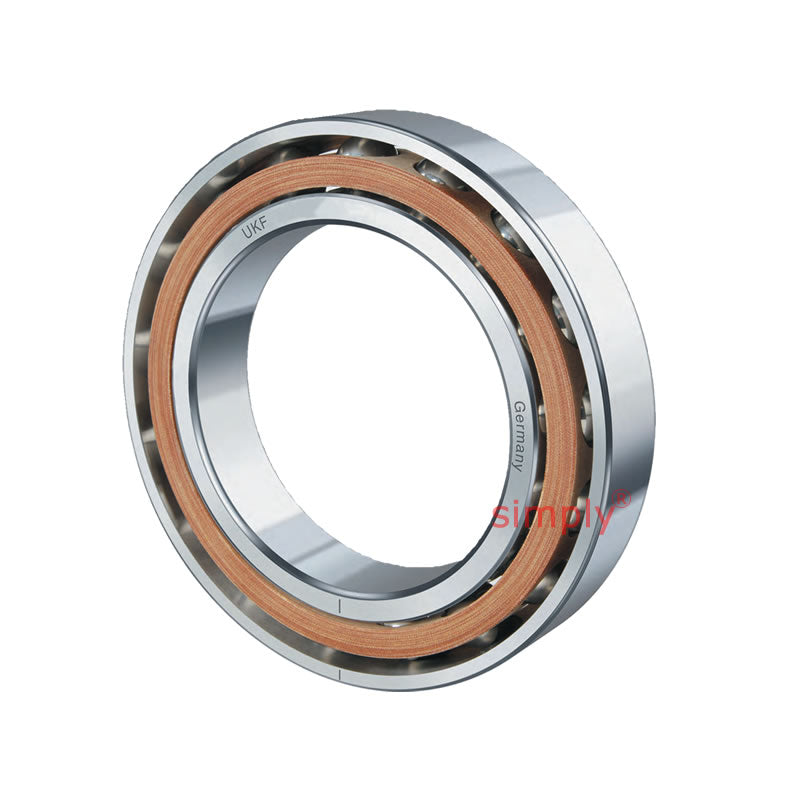

UKF 70USS90A210IM Super Precision Angular Contact Spindle Bearing 90x140x24mm

UKF 70USS90A210IM Super Precision Angular Contact Spindle Bearing 90x140x24mm
CHF 255.00 ex VAT
CHF 255.00 ex VAT
Sale Sold out

Equivalent to: 70USS90 .A21.0/I.M

In stock

Price Break
3+ CHF 204.00
5+ CHF 192.54
10+ CHF 190.25
25+ CHF 187.96
49+ CHF 185.66
74+ CHF 183.37
99+ CHF 171.91
199+ CHF 169.62
249+ CHF 167.33
499+ CHF 165.04
999+ CHF 160.45

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
UJZTL76NYY
Brand / Quality:
UKF - High Quality
Inside Diameter:
90mm
Outside Diameter:
140mm
Width:
24mm
Seals / Shields:
None
Style:
Single Universal Matchable Bearing
Contact Angle:
21 Degree contact angle
Bearing Preload:
Medium preload
Technical
d 90mm
D 140mm
B 24mm
Dynamic load Co 69000 N
Static load C 69600 N
Speed in Grease 8000 rpm
Speed in Oil 12500 rpm
r<sub>a</sub> 1.2mm
d<sub>a</sub> 100mm
D<sub>a</sub> 130mm
Axial Preload F<sub>v</sub> L 510 N
Axial Preload F<sub>v</sub> M 1520 N
Axial Preload F<sub>v</sub> S 3040 N
Axial Rigidity R<sub>a</sub> L 170 N/&mu;m
Axial Rigidity R<sub>a</sub> M 245 N/&mu;m
Axial Rigidity R<sub>a</sub> S 310 N/&mu;m
Radial Rigidity R<sub>r</sub> L 690 N/&mu;m
Radial Rigidity R <sub>r</sub> M 990 N/&mu;m
Radial Rigidity <sub>r</sub> S 1250 N/&mu;m
Weight 1.15 kg
