SKU: 70USOC90-UKF

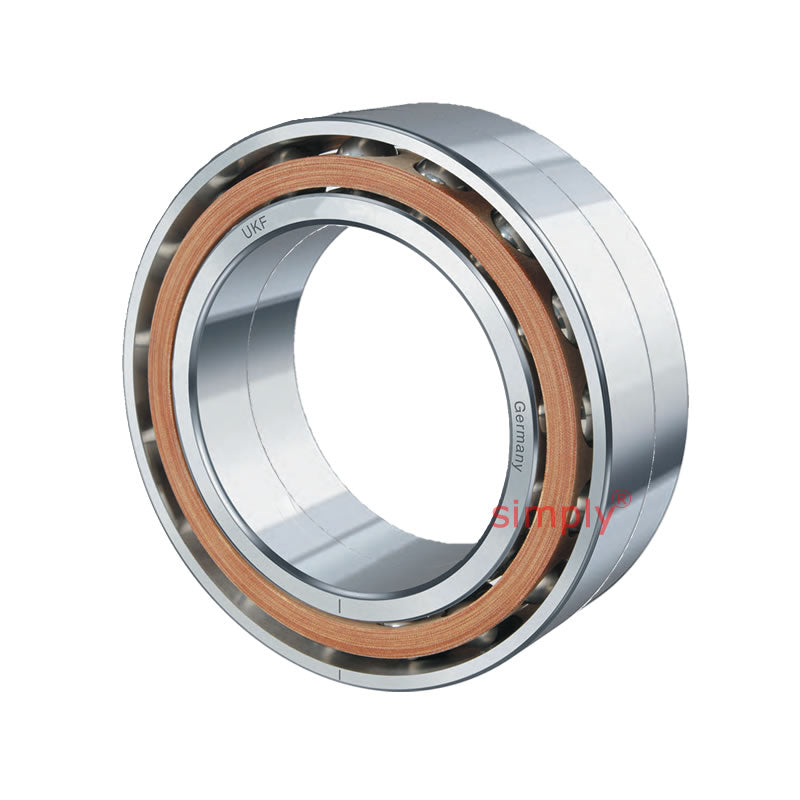

UKF 70USOC90 Super Precision Double Row Angular Contact Spindle Bearing 90x140x48mm
UKF 70USOC90 Super Precision Double Row Angular Contact Spindle Bearing 90x140x48mm
Equivalent to: 70USOC90
Out of stock
Share this product
Description
Description
- Brand / Quality:
- UKF - High Quality
- Inside Diameter:
- 90mm
- Outside Diameter:
- 140mm
- Width:
- 48mm
- Seals / Shields:
- None
- Style:
- Double Row Angular Contact Spindle Bearings
Technical
Technical
| d | 90mm |
|---|---|
| D | 140mm |
| B | 48mm |
| Dynamic load Co | 76450 N |
| Static load C | 87710 N |
| Speed in Grease | 10500 rpm |
| Speed in Oil | 16800 rpm |
| r<sub>a</sub> | 1.2mm |
| d<sub>a</sub> | 100mm |
| D<sub>a</sub> | 130mm |
| Axial Preload F<sub>v</sub> L | 510 N |
| Axial Preload F<sub>v</sub> M | 1520 N |
| Axial Preload F<sub>v</sub> S | 3040 N |
| Axial Rigidity R<sub>a</sub> L | 196 N/μm |
| Axial Rigidity R<sub>a</sub> M | 282 N/μm |
| Axial Rigidity R<sub>a</sub> S | 357 N/μm |
| Radial Rigidity R<sub>r</sub> L | 794 N/μm |
| Radial Rigidity R <sub>r</sub> M | 1139 N/μm |
| Radial Rigidity <sub>r</sub> S | 1438 N/μm |
| Weight | 1.96 kg |
