• NSK 7012A5TRSULP3 Super Precision Angular Contact Spindle Bearing 60x95x18mm
1 1

SKU: 7012A5TRSULP3-NSK

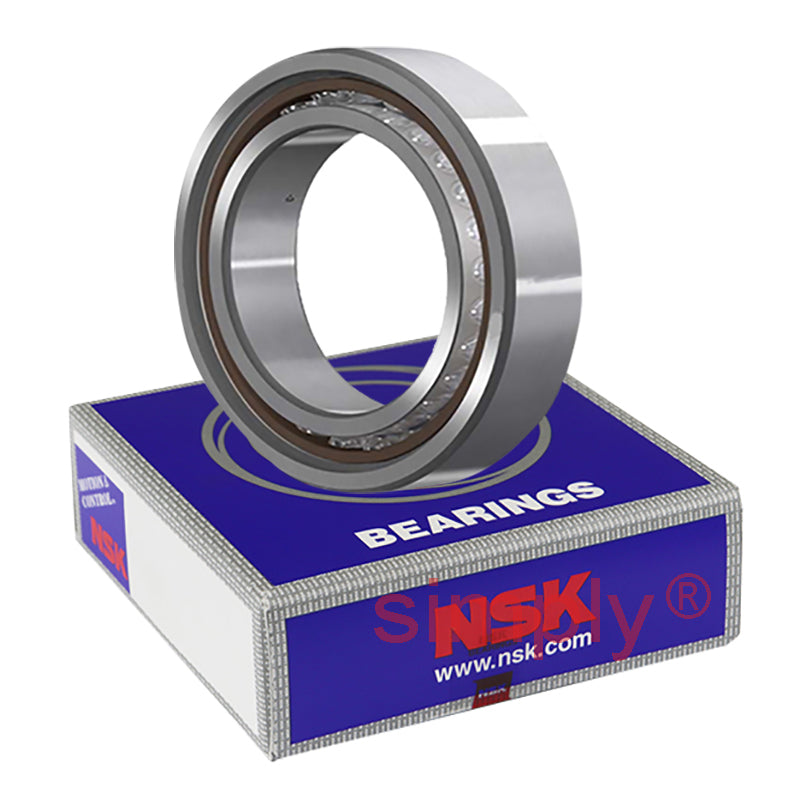

NSK 7012A5TRSULP3 Super Precision Angular Contact Spindle Bearing 60x95x18mm

NSK 7012A5TRSULP3 Super Precision Angular Contact Spindle Bearing 60x95x18mm
CHF 239.00 ex VAT
CHF 239.00 ex VAT
Sale Sold out

In stock

Price Break
3+ CHF 186.99
5+ CHF 176.49
10+ CHF 174.39
25+ CHF 172.29
49+ CHF 170.19
74+ CHF 168.08
99+ CHF 157.58
199+ CHF 155.48
249+ CHF 153.38
499+ CHF 151.28
999+ CHF 147.07

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
FOIYY32A5T
Brand / Quality:
NSK - High Quality
Inside Diameter:
60mm
Outside Diameter:
95mm
Width:
18mm
Seals / Shields:
None
Style:
Single Universal Matchable Bearing
Contact Angle:
25 Degree contact angle
Bearing Preload:
Light preload
Technical
--- Bearing dimensions
d 60mm
D 95mm
B 18mm
r<sub>min</sub> 1.1mm
r1<sub>min</sub> 0.6mm
--- Loads angles and speeds
C<sub>r</sub> 35Kn
C<sub>or</sub> 29.1kN
Axial load Kn 23 kN
Contact angle 25 degrees
Factor f<sub>o</sub> -
Effective diameter 27.1mm
Max speed in grease 13000 rpm
Max speed in oil 19400 rpm
--- Fitting dimensions
d<sub>a min</sub> 67mm
D<sub>a max</sub> 88mm
D<sub>b max</sub> 90mm
r<sub>a max</sub> 1mm
r<sub>b max</sub> 0.6mm
Weight 0.408kg
