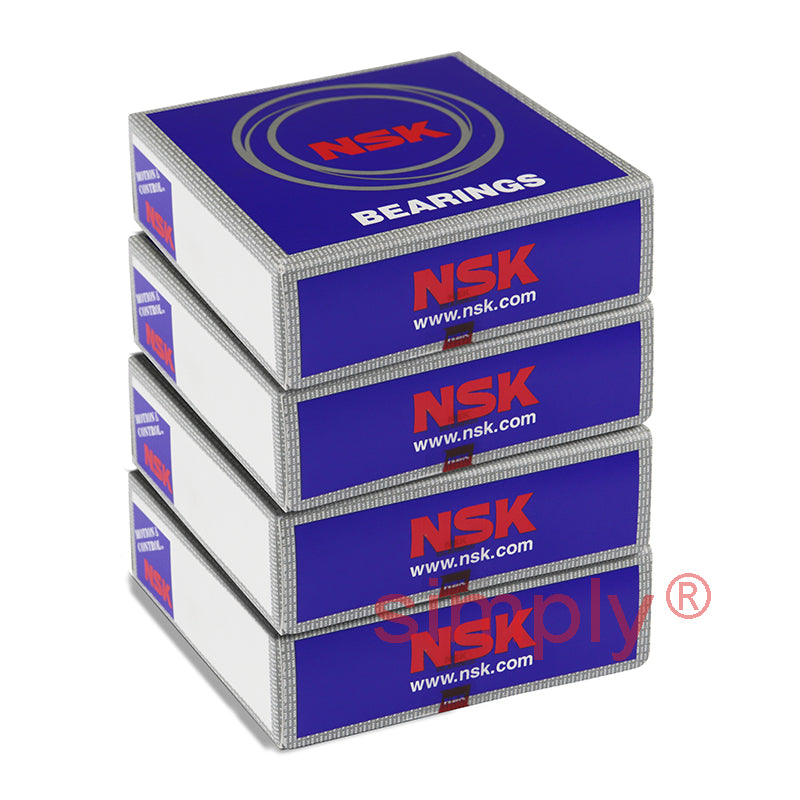

• NSK 7012A5TRQUMP3 Super Precision Angular Contact Spindle Bearing 60x95x18mm (Set of 4)
1 1

SKU: 7012A5TRQUMP3-NSK

NSK 7012A5TRQUMP3 Super Precision Angular Contact Spindle Bearing 60x95x18mm (Set of 4)

NSK 7012A5TRQUMP3 Super Precision Angular Contact Spindle Bearing 60x95x18mm (Set of 4)
CHF 951.00 ex VAT
CHF 951.00 ex VAT
Sale Sold out

In stock

Price Break
3+ CHF 745.73
5+ CHF 703.84
10+ CHF 695.46
25+ CHF 687.08
49+ CHF 678.70
74+ CHF 670.32
99+ CHF 628.43
199+ CHF 620.05
249+ CHF 611.67
499+ CHF 603.29
999+ CHF 586.53

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
RGR72E2J9J
Brand / Quality:
NSK - High Quality
Inside Diameter:
60mm
Outside Diameter:
95mm
Width:
18mm
Seals / Shields:
None
Style:
Universal Matched Quad Bearing Set
Contact Angle:
25 Degree contact angle
Bearing Preload:
Medium preload
Technical
--- Bearing dimensions
d 60mm
D 95mm
B 18mm
r<sub>min</sub> 1.1mm
r1<sub>min</sub> 0.6mm
--- Loads angles and speeds
C<sub>r</sub> 35Kn
C<sub>or</sub> 29.1kN
Axial load Kn 23 kN
Contact angle 25 degrees
Factor f<sub>o</sub> -
Effective diameter 27.1mm
Max speed in grease 13000 rpm
Max speed in oil 19400 rpm
--- Fitting dimensions
d<sub>a min</sub> 67mm
D<sub>a max</sub> 88mm
D<sub>b max</sub> 90mm
r<sub>a max</sub> 1mm
r<sub>b max</sub> 0.6mm
Weight 1.632kg
