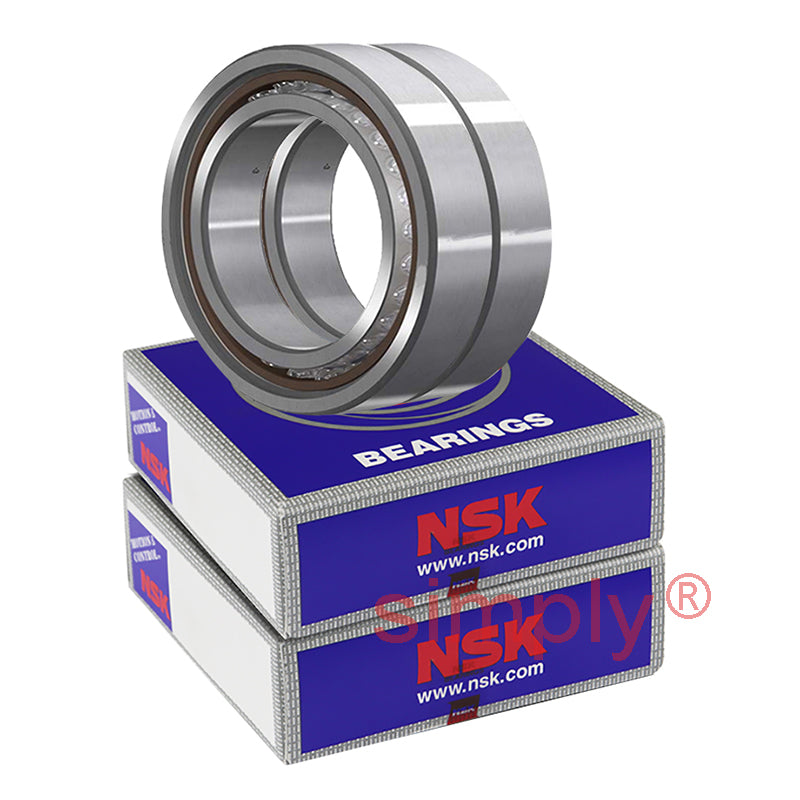

• NSK 7009CTRDULP3 Super Precision Angular Contact Spindle Bearing 45x75x16mm (Set of 2)
1 1

SKU: 7009CTRDULP3-NSK

NSK 7009CTRDULP3 Super Precision Angular Contact Spindle Bearing 45x75x16mm (Set of 2)

NSK 7009CTRDULP3 Super Precision Angular Contact Spindle Bearing 45x75x16mm (Set of 2)
CHF 346.00 ex VAT
CHF 346.00 ex VAT
Sale Sold out

In stock

Price Break
3+ CHF 276.23
5+ CHF 260.72
10+ CHF 257.61
25+ CHF 254.51
49+ CHF 251.40
74+ CHF 248.30
99+ CHF 232.78
199+ CHF 229.68
249+ CHF 226.57
499+ CHF 223.47
999+ CHF 217.26

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
5ZG1TM6ZIA
Brand / Quality:
NSK - High Quality
Inside Diameter:
45mm
Outside Diameter:
75mm
Width:
16mm
Seals / Shields:
None
Style:
Universal Matched Pair of Bearings
Contact Angle:
15 Degree contact angle
Bearing Preload:
Light preload
Technical
--- Bearing dimensions
d 45mm
D 75mm
B 16mm
r<sub>min</sub> 1mm
r1<sub>min</sub> 0.6mm
--- Loads angles and speeds
C<sub>r</sub> 25.6Kn
C<sub>or</sub> 19.3kN
Axial load Kn 12.4 kN
Contact angle 15 degrees
Factor f<sub>o</sub> 15.4
Effective diameter 16mm
Max speed in grease 19200 rpm
Max speed in oil 29200 rpm
--- Fitting dimensions
d<sub>a min</sub> 51mm
D<sub>a max</sub> 69mm
D<sub>b max</sub> 70mm
r<sub>a max</sub> 1mm
r<sub>b max</sub> 0.5mm
Weight 0.476kg
