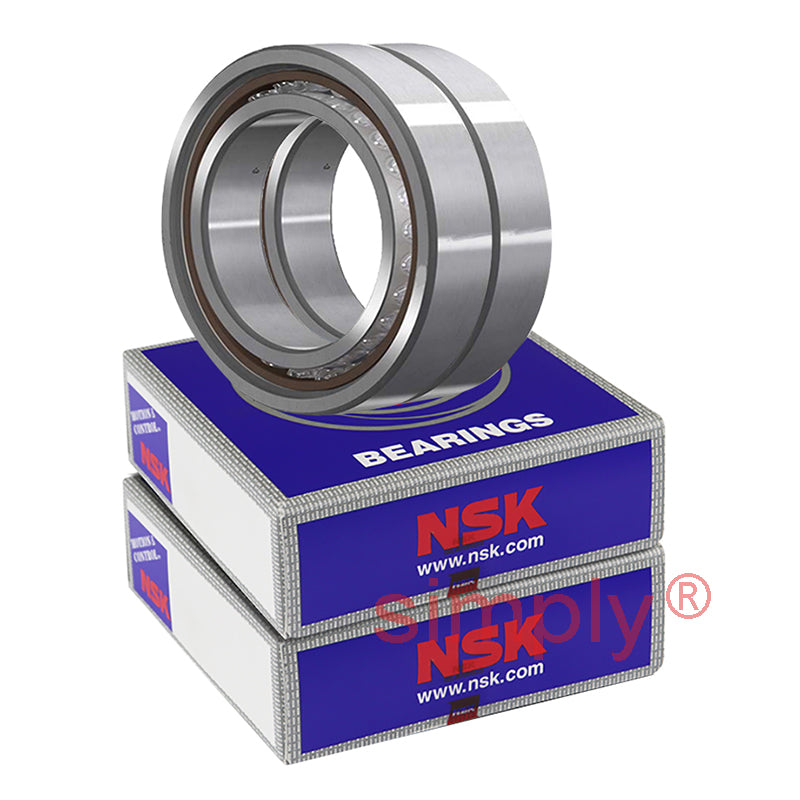

• NSK 7008A5TRV1VDULP3 Super Precision Sealed Angular Contact Spindle Bearing 40x68x15mm (Set of 2)
1 1

SKU: 7008A5TRV1VDULP3-NSK

NSK 7008A5TRV1VDULP3 Super Precision Sealed Angular Contact Spindle Bearing 40x68x15mm (Set of 2)

NSK 7008A5TRV1VDULP3 Super Precision Sealed Angular Contact Spindle Bearing 40x68x15mm (Set of 2)
CHF 411.00 ex VAT
CHF 411.00 ex VAT
Sale Sold out

In stock

Price Break
3+ CHF 328.28
5+ CHF 309.84
10+ CHF 306.15
25+ CHF 302.46
49+ CHF 298.77
74+ CHF 295.08
99+ CHF 276.64
199+ CHF 272.95
249+ CHF 269.26
499+ CHF 265.57
999+ CHF 258.20

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
5ZG1TM6ZIA
Brand / Quality:
NSK - High Quality
Inside Diameter:
40mm
Outside Diameter:
68mm
Width:
15mm
Seals / Shields:
Rubber Sealed
Style:
Universal Matched Pair of Bearings
Contact Angle:
25 Degree contact angle
Bearing Preload:
Light preload
Technical
--- Bearing dimensions
d 40mm
D 68mm
B 15mm
r<sub>min</sub> 1mm
r1<sub>min</sub> 0.6mm
--- Loads angles and speeds
C<sub>r</sub> 20.5Kn
C<sub>or</sub> 15.1kN
Axial load Kn 12 kN
Contact angle 25 degrees
Factor f<sub>o</sub> -
Effective diameter 20.1mm
Max speed in grease 18600 rpm
Max speed in oil 27800 rpm
--- Fitting dimensions
d<sub>a min</sub> 46mm
D<sub>a max</sub> 62mm
D<sub>b max</sub> 63mm
r<sub>a max</sub> 1mm
r<sub>b max</sub> 0.5mm
Weight 0.376kg
